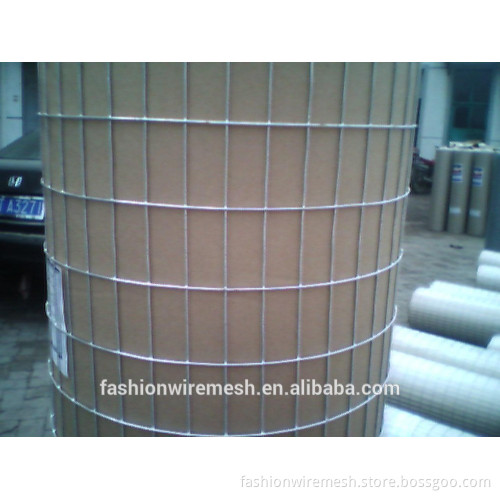

Electro galvanized welded wire mesh

Specifications Electro galvanized welded wire mesh

Directt factory, have competitive price, with high quality.

  Product Description Different from hot-dipped galvanized welded wire mesh, electro galvanized welded wire mesh is made of low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electric galvanized after welding. The finished products are level and flat with sturdy structure.

Mostly they are electro galvanized after welding (GAW), it can offer superior corrosion resistance compared to low carbon steel without the expense of stainless steel. This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.

Electro galvanized welded wire mesh typical specification:
5/8" × 5/8", Wire Gauge 18, 19, 20, 21;
3/4" × 3/4", Wire Gauge 16, 17, 18, 19, 20, 21;
1" × 1/2", Wire Gauge 16, 17, 18, 19, 20, 21;
1-1/2" × 1-1/2", Wire Gauge 14, 15, 16, 17, 18, 19;
1" × 2", Wire Gauge 14,15, 16;
2" × 2", 12, 13, 14, 15, 16.

Mesh inch	Width length	Weight
1/2	3ft. × 50ft.	8.25kg/roll
1/2  1/2  1/2  3/4	4ft. × 50ft.  5ft. × 50ft.  6ft. × 50ft.  3ft. × 50ft.	11kg/coil  13.75kg/coil  16.5kg/coil  15kg/coil
3/4	4ft. × 50ft.	20kg/coil
3/4  3/4  1	5ft. × 50ft.  6ft. × 50ft. 3ft. × 50ft.	25kg/coil  30kg/coil  20kg/coil
1	5ft. × 50ft.	30kg/coil
1	4ft. × 50ft.	25kg/coil
1	6ft. × 50ft.	35kg/coil

We have the cold zinc galvanized welded wire mesh in large stock as following table:

Cold zinc welded wire mesh	Cold galvanized welded mesh
25mm × 12mm × 0.87mm × 1m × 30m 16.00kgs	25mm × 12mm × 0.87mm × 1m × 30m 16kg
12mm × 12mm × 0.87mm × 1m × 30m 21.00kgs	12mm × 12mm × 0.87mm × 1m × 30m 21kg
25mm × 25mm × 0.5mm × 1m × 50m 6.00kgs	25mm × 25mm × 0.5mm × 1m × 50m 6.00kg
12mm × 12mm × 0.5mm × 1m × 30m 7.00kgs	12mm × 12mm × 0.5mm × 1m × 30m 7.00kg

Electro galvanized welded wire meshes are mostly used in construction for the buildings materials, floor concrete, reinforcement mesh and so on. The solid structure give the advantages.

      Product quality and cheap, complete specifications. Welcome the general customers to order the product!       Company Information Anping County Fashion Metal Wire Mesh Product Co., Ltd.  which is located in the "China Wire Mesh Industry Base"---Anping county Hebei province.
which gather scientific research,production, operation and sale.   1.The company has passed ISO9001:2000 quality system certification.
2.Quality assured manufacturer of wire mesh in China.
3.Dedicated to our customer's satisfaction and success. Our Services 1.Provide free sample for customer. 2.Provides the high quality product and the consummation post-sale service wholeheartedly for the customer.
3.Any question,pls feel free to contact me.
   Hope to have chance to cooperation with u and create brilliant tomorrow.
