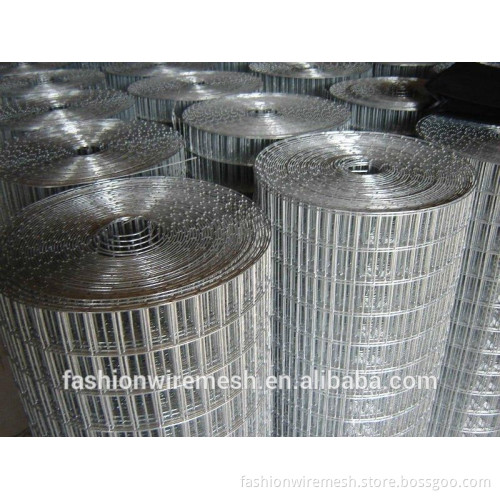

Hot-dipped galvanized welded wire mesh

Specifications Hot-dipped galvanized welded wire mesh

Directt factory, have competitive price, with high quality.

  Product Description Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on. Hot-dipped galvanized welded wire mesh is generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing. Hot-dipped galvanized welded wire characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.
This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application. Hot-dipped galvanized welded wire Specification: 1) Hot dip galvanized welded mesh + PVC coating (Green 6005) : 12.7 × 12.7mm / wire diameter internal 0,.65mm - coated 0.90mm / roll height 100cm / roll length 5m.
2) Hot dip galvanized mesh (galvanized after welding) : 12.7 × 12.7mm / wire diameter 0.65mm / roll height 50cm / roll length 5m.
3) Hot dip galvanized mesh (after weaving) + PVC coating (Green 6005) : mesh 25mm / wire diameter internal 0.80mm - coated 1.00mm / roll height 50cm / roll length 10m.
4) Hot dip galvanized mesh (galvanized after weaving) : mesh 13mm / wire diameter 0.70mm / roll height 50cm / roll length 10m.
Technology info:
Diameter: 0.65 +/- 0.025mm.
Zn-coating: min. 20g/m².
Tensile strength: 300 - 450 N/mm².
Elongation: min. 15% .
Carbon: max . 0.10%.
Make-up: 150kg coils with an internal dia. of +/- 270mm and an external dia. of +/- 450mm.

Mesh Size		Wire Gauge Diameter
In MM	In Inch	BWG No.	MM
6.4	1/4	24-22	0.56- 0.71
9.5	3/8	23-19	0.64 - 1.07
12.7	1/2	22-16	0.71 - 1.65
15.9	5/8	21-16	0.81 - 1.65
19.1	3/4	21-16	0.81 - 1.65
25.4 × 12.7	1 × 1/2	21-16	0.81 - 1.65
25.4	1	21-14	0.81 - 2.11
38.1	1 1/2	19-14	1.07 - 2.11
25.4 × 50.8	1 × 2	17-14	1.47 - 2.11
50.8	2	16-12	1.65 - 2.77
50.8 to 305	2 to 12

GI square wire mesh specification:

Mesh	Width length	Weight
16 × 16	3ft. × 100ft.	24.75kg/roll
16 × 16	4ft. × 100ft.	33kg/coil
16 × 16	4ft. × 100ft.	41.25kg/coil
16 × 16	5ft. × 100ft.	18kg/coil
40 × 40	1mtr × 100ft.	20kg/coil

We have hot galvanized welded wire mesh in large stock:

Hot zinc welded wire mesh	Hot-dip Galvanized welded wire mesh
20mm × 20mm × 1.0mm × 1m × 30m 6kgs	20mm × 20mm × 1.0mm × 1m × 30m 16kg
25mm × 25mm × 1.8mm × 1m × 30m	20mm × 20mm × 1.00mm × 1m × 30m 16kg
50mm × 50mm × 1.80mm × 1.5m × 30m 30kgs	50mm × 50mm × 1.80mm × 1.5m × 30m 30kg
50mm × 25mm × 1.60mm × 1m × 30m 21kgs	50mm × 25mm × 1.60mm × 1m × 30m 21kg
50mm × 25mm × 1.80mm × 1.5m × 30m 48kgs	50mm × 25mm × 1.80mm × 1.5m × 30m 48kg

	Mesh	Thickness	Height
	mm	mm	cm
Galvanized Welded Wire Mesh (Galvanized  After Weaving)    Hot Dip Galvanized Wire	06 × 06	0.65	50 - 150
	13 × 13	0.90
	13 × 25	1.45
	19 × 19	1.45
	25 × 25	1.75
Galvanized Welded Wire Mesh (Galvanized  Before Weaving)    Hot Dip Galvanized Wire	13 × 13	1.40	50 - 200
	13 × 25	1.50
	19 × 19	1.50
	75 × 13	1.90
	50 × 25	1.90
	50 × 50	1.90, 2.80
PVC Welded Mesh (hot dipped)	13 × 13	1.20	50 - 200
	19 × 19	1.20, 1.40
	25 × 25	2.

Product quality and cheap, complete specifications. Welcome the general customers to order the product!       Company Information Anping County Fashion Metal Wire Mesh Product Co., Ltd.  which is located in the "China Wire Mesh Industry Base"---Anping county Hebei province.
which gather scientific research,production, operation and sale.   1.The company has passed ISO9001:2000 quality system certification.
2.Quality assured manufacturer of wire mesh in China.
3.Dedicated to our customer's satisfaction and success. Our Services 1.Provide free sample for customer. 2.Provides the high quality product and the consummation post-sale service wholeheartedly for the customer.
3.Any question,pls feel free to contact me.
   Hope to have chance to cooperation with u and create brilliant tomorrow.
