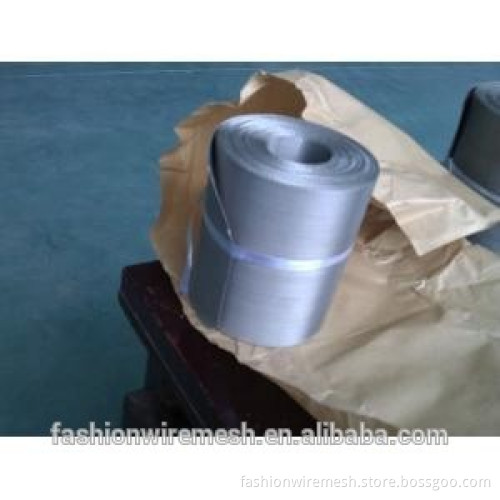

Stainless Steel Filter Screen Belt

Specifications Stainless Steel Filter Screen Belt

High-quality cast film, sheet, plate, optic-fiber and all kinds of wire-drawing

  Product Description Stainless steel reverse belt mesh Material: 302 304 304L 316 316L
Specification
304, 316 stainless steel wire
Reverse Dutch weave wire mesh
48x10 mesh
72x15 mesh
132x17 mesh
152x24 mesh
260x40 mesh
250x40 mesh
400x120 mesh
100mm to 1200mm width
10m to 30m length
Other size available

Application:

1. PP, PE, ABS, PS, PMMA and other plastic melt.

2. High-quality cast film, sheet, plate, optic-fiber and all kinds of wire-drawing.

Performance characteristic:

1. The automatic instant mesh belt filters replace filter without any manual operation.

2. The material flow never fluctuates.

4. Blet pump make high quality, good stability.

5. No waste and less consumption of raw materials.

6. Consists of 10 meters or 20 meters filter belt, belt box and electric control system.

7. Non-stop working production and absence of material fluctuation while exchanging screen

Mesh	Wire diameter(mm)	Weight(kgs/m2)
72x15	0.45x0.55	4.8
120x16	0.35x0.45	4.485
132x18	0.35x0.45	4.95
152x24	0.30x0.45	4.635
160x17	0.27x0.45	3.777
170x17	0.27x0.45	3.9586
180x19	0.26x0.45	4.0
200x40	0.17x0.27	2.17
260x40	0.15x0.25	2.09
325x40	0.13x0.24	1.95

      Company Information Anping County Fashion Metal Wire Mesh Product Co., Ltd.  which is located in the "China Wire Mesh Industry Base"---Anping county Hebei province.
which gather scientific research,production, operation and sale.   1.The company has passed ISO9001:2000 quality system certification.
2.Quality assured manufacturer of wire mesh in China.
3.Dedicated to our customer's satisfaction and success. Our Services 1.Provide free sample for customer. 2.Provides the high quality product and the consummation post-sale service wholeheartedly for the customer.
3.Any question,pls feel free to contact me.
   Hope to have chance to cooperation with u and create brilliant tomorrow.
