fire retardant aluminium foil/insulation aluminium woven foil heat insulation material

Specifications Fireproof, heat insulation, waterproof,soundproof

OEM Servise

density:10-48kg/m3

thickenss:25-150mm

AS/NZS4859,CE

fire retardant aluminium foil/insulation aluminium woven foil heat insulation material             we can provide OEM servise     Product Description
POWER aluminum foil insulation are mainly used as facing for glass wool insulation, rock wool, mineral wool and so on. Also used under roof decking, under attic rafters, over existing attic thermal insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during in winter. ,Reinforced with Tri-way fiberglass scrim also used as a moisture vapor barrier in air conditioning ductworks and cold rooms.
Aluminium Foil Features:
1) With high tensile strength and bursting strength
2) Used as jacket facing for glass wool, rock wool, PU foam and other insulation to protect them against vapor moisture, in order to work more effectively
    Aluminium Foil Specification: 1) Foil: 7μm 2) 2-way scrim: 12.5 x 12.5mm space
3) Polyethylene 4) Kraft: 50gsm, natural 5) FSK716B: 6) Foil: 7μm 7) 2-way scrim: 12.5 x 12.5mm space
8) Polyethylene 9) Kraft: 60gsm, natural
10)Roll width: 1.0, 1.2, 1.25, 1.30m
11) Roll length: 60, 120, 300, 500, 1600, 2750m   Aluminium Foil Technical Parameters:

Physical Properties	Test  Method	Values (English)	Values(Metric)
Basis Weight	Scale	25.5lbs/1000 ft2	125g/m2
Tensile Strength	GB/T12914-1991	22.5lbs/inch(MD)	3.79 kn/m(MD)
		13.9lbs/inch(XD)	2.31 kn/m(XD)
Bursting Strength	GB/T454-2002	36 lbs/psi	248 kpa
Water-resitant	23 °C 24h	No phenomenon of layered	No phenomenon of layered
Low-temperature resistant	-40 °C 1h	No phenomenon of layered	No phenomenon of layered
High temperature resistant	116 °C 4h	No leakage phenomenon	No leakage phenomenon
Thickness	Micrometer	0.0058 inch	150cron

      Packaging & Shipping    60m roll: plastic shrinking sleeve
120, 300, 500m rolls: Kraft cardboard

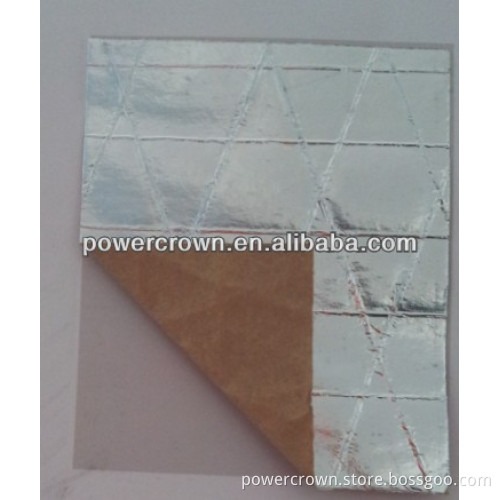

1600, 2750m jumbo rolls: corrugated board + ply-wooden pallet.     Photo            We welcome you visit our factory any time!!
