glass wool fire protection thermal conductivity fsk glass wool insulation

Specifications glass wool fire protection thermal conductivity fsk glass wool insulation

density10-48kg/m3

thickenss:25-150mm

AS/NZS4859,CE

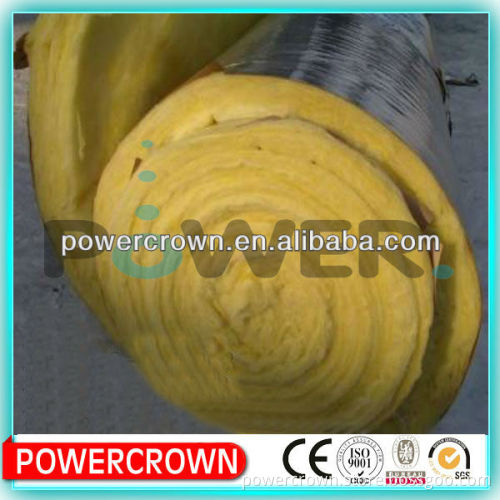

glass wool fire protection thermal conductivity fsk glass wool insulation             Introduction Centrifugal glass wool felt is made with patented centrifugal technology, by turning the melted glass into fiber and adding heat-convertible-resin-basis environment friendly adhesive.  It is a kind of elastic felty product accumulated by glass fiber filament  with diameter of several micrometers, and moisture proof veneering product can be sticked on production line according to customers’ needs.   Producing: Glass wool board is processed by putting the thermosetting binder into the glass wool, by pressing and heating, and then, by curing.   Usage: They are used for insulation, ventilation and adjustment of air-conditioner in commercial industry and residential constructions. Meanwhile, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.     1. Standard Size:

Item	Products	Density kg/m3	Thickness	Size Length*width
1	Glass wool felt	10	50-150mm	10-30m*1200mm
2	Glass wool felt	12	50-150mm	10-30m*1200mm
3	Glass wool felt	14	40-150mm	10-30m*1200mm
4	Glass wool felt	16	25-150mm	10-30m*1200mm
5	Glass wool felt	18	25-150mm	10-30m*1200mm
6	Glass wool felt	20	25-150mm	10-30m*1200mm
7	Glass wool felt	22	25-150mm	10-30m*1200mm
8	Glass wool felt	24	25-150mm	10-20m*1200mm
9	Glass wool felt	32	25-150mm	10-20m*1200mm
10	Glass wool felt	38	15-150mm	10-20m*1200mm
11	Glass wool felt	48	10-120mm	10-20m*1200mm

Also can produce as request

2.Technical parameter Data   <div >

Number	Item	Unit	National Standard	Company Product	Remark
1	Density	kg/m3		10-48	GB483.3-85
2	Avearage Fiber diameter	μm	≤8.0	5.5	GB5480.4-85
3	Hygroscopicity	%	≥98	98.2	GB10299-88
4	Thermal Conductivity	w/m.k	≤0.042	0.033	GB10294-88
5	Noncombustibility	0	Noncombustible	Noncombustible (A)	GB5464-85
6	Sound Absorption Coefficient	0	0	1.03 product reverberation method 24kg/m3 2000HZ	GBJ47-83
7	Highest usage Temperature	°C	≤480	480	GB11835-89

  3: Application
Heat preservation for steel structure building ,
Heat insulation for wall and roof of house to save energy.
For indoor partition wall,Train compartment,
For cool-making and high buildings required to be fireproof,heat resistant and sound insulating.    It was the best material used for the insulation and sound absorption of steel structures.They are widely used in industrial plants, warehouse, public facilities, exhibition centre’s, shopping centers, cold shores and a variety of indoor playgrounds, sports grounds and other buildings. Classification: It mainly includes bare blanket with foil-clad covered.

4.Package

Standard package:Plastic package and weave bag,vacuumized package. Can print any information on weave bag.   4. Related Products       5 .PHOTO

Raw Materials List

Packing and Inspection

Loading Containers

Install Project         We welcome you visit our factory any time!!
