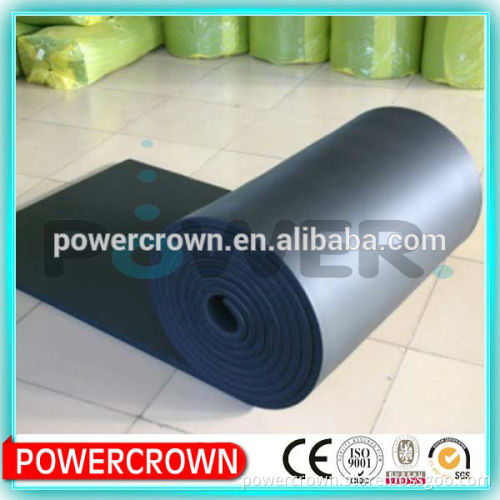

Closed Cell Insulation Rubber Foam For Pipe Line

Specifications Manufacturer of Rubber foam insulation sheet and pipe:

1.low thermal conductivity

2.full-closed structure

3.CE, SGS, RoHS

    Product Description:   NBR/PVC plastic rubber foam for air-conditioning
Apply in air-conditioning system
SGS, ISO, Certify
Flammability B1    Rubber foam specification   Main specification range: Length: 9m-30m Width: 1m,1.2m Thickness: 6mm,9mm-30mm   Technical parameter Data  Tenical parameter Data

Item		Unit	Specification	Standard
Density		Kg/m³	≤95	GB/T6343
Flammability	Oxygen index	%	≥32	GB/T2406
	SDR	——	≤75	GB/T8627
Conductivity factor Average temperature -20°C 0°C 40°C		W/(m.k)	≤0.031 ≤0.034 ≤0.036	GB/T10294
Watervapor permeability	Coefficient	g/(m.s.pa)	≤2.8*10-11	GB/T17146-1997
	Factor	——	≥7.0*10³
Water absorption ratio in vacuum		%	≤10	GB/T17794-2008
Dimension stability 105±3°C,7d		%	≤10	GB/T8811
Crack resistance		N/cm	≥2.5	GB/T10808
Compression resilience ratio Compression time 72h		%	≥70	GB/T6669-2001
Anti-ozone Ozone pressure 202mpa 200h		——	Not cracking	GB/T7762
Aging resistance 150h		——	Slightly crumpling, no cracks,	GB/T16259
Temperature		°C	-40°C——110°C	GB/T17794

        Distinctive advantages   • Closed structure can effectively prevent thermal conduction.   • Thermal conductivity :0.034W/m • k while 0   • High heat emission coefficient of surface, up to 9W/m2k   • Excellent anti-steam permeated ability; moisture resistance 10,000 (DIN 52615); "built-in"    steam-proof coating; the insulation board is insulating layer and moisture-proof coating as well.   • Excellent fireproofing; oxygen index is above 40.   • Easy for installation.   • No CFC, HFC, HCFC or other materials containing fluorine, also no formaldehyde, dust or fiber.       Delivery Information MOQ: 1X20"FT, 1X40"HQ Delivery Time: Within 7-15 days after received advance Payment: T/T, L/C, DP & DA and we can discuss.   Product picture show:           ,            Our Company Mission: Help partners to achieve success. Cooperaion wih customers to create a win-win situation. We will guarantee the best quality and service let you more satisfied.         When you have free time, welcome to visit our factory any time.
