best price stainless steel demister

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

best price stainless steel demister 1.mesh demister

diameter DN	size(mm)				weight(Kg)
diameter DN	H	H1	H2	D	mesh pad	grid	support piece
3400	100	350	600	3280	156	126	312
3400	150	400	650	3280	234	127	312
3600	100	350	600	3480	175	139	315
3600	150	400	650	3480	262	141	315
3800	100	350	600	3680	194	159	329
3800	150	400	650	3680	292	162	329
4000	100	350	600	3880	216	176	345
4000	150	400	650	3880	323	177	345
4200	100	350	600	4080	239	189	359
4200	150	400	650	4080	359	192	359
4400	100	350	600	4280	259	202	374
4400	150	400	650	4280	391	204	374
4600	100	350	600	4480	285	224	401
4600	150	400	650	4480	427	227	401
4800	100	350	600	4680	310	243	414
4800	150	400	650	4680	465	245	414

wire mesh demister specification	High efficient type	shock absorption type
standard type Material: 302,304,304 L, 316,316 L, 317 Specifications are as follows: Model :40-100 60-150 ,140-400 common diameter :0.20-0 .45 mm form code: SP Weight capacity: 168 Kg/m³ specific surface area: 529.6 m^2/m³ porosity : 0.9788ε	Material: 302,304,304 L, 316,316 L, 317 Specifications are as follows: Model : 60-100 80-150 200-400 80-100 90-150 common diameter : 0.12-0.45mm form code: HR Weight capacity: 128 Kg/m³ specific surface area: 403.5 m2/m³ porosity : 0.9839ε	Material: 302,304,304 L, 316,316 L, 317 Specifications are as follows: Model : 20-40, 30-80, 40-120,50-120 common diameter : 0.21mm form code: HR Weight capacity: 168 Kg/m3 specific surface area: 529.6 m2/m3 porosity : 0.9788ε

wire mesh demister specification

High efficient type

shock absorption type

standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
common diameter :0.20-0 .45 mm
form code: SP
Weight capacity: 168 Kg/m³
specific surface area: 529.6 m^2/m³
porosity : 0.9788ε

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150

common diameter : 0.12-0.45mm

form code: HR
Weight capacity: 128 Kg/m³
specific surface area: 403.5 m2/m³
porosity : 0.9839ε

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120

common diameter : 0.21mm

form code: HR
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε

2.Applications Reinforcing welded mesh is widely used for building construction,bridge building,highway and expressway building,airports,factories and mining support mesh,etc. 3.Feature A. 99% efficiency under general conditions and velocity (1~3m/sec or higher).
B. Over 98% open area is guaranteed under any conditions so pressure drop caused by the use of the demister can be disregarded (0.1”~1.0 W/G). C. Can be made of any material suitable for the given temperature and corrosion-resistance.

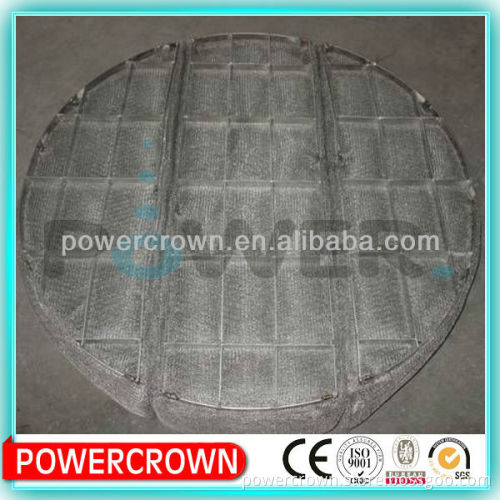

D. Self-cleaning, semi-permanent making it economical. 4.photo

5.Advantage Lower the cost of the project. Speed up the construction progress. Ensure the quality of the project. Anti-cracking performance,etc. 6.contact Shijiazhuang Hongcome Commercial co.,ltd Web: www.crownglasswool.com company add:Room1516 ,No 2 Building ,Wada Plaza ,Jianhua Street ,Shijiazhuang City ,Hebei Provice,China
