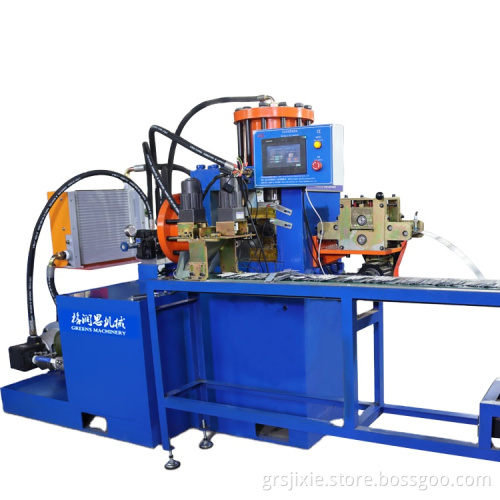

Automatic Brad Nail Making Machine and Staple Production Line

Automatic Brad Nail Making Machine and Staple Production Line

$9700.00

1-2 set
$9500.00

≥3 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Automatic pneumatic arrayed staple production line Automatic F/T brad nail making machine/staple production line

1.wire flatter

Motor power	2.2kw
Speed	0-350 m/min
Wire flatting range	0.4--2mm
Weight	900kg

2.wire gluing combiner

Motor power	9kw
Speed	2-18m/min
Combububg width	50-150mm
Weight	1500KG

3.F/T hydraulic atraight nail forming machine

Motor power	Speed	Weight
7.5kw	100-140 pcs/min	2000kg

Automatic F/T brad nail making machine/staple production line

F/T technical parameter:

1,F nail specifications are divided into:F10,F15,F20,F25,F30,F40, wire diameter: standard diameter for: Φ1.18mm, squash thickness: 1mm, F nails used in the range of wire diameter: Φ1.05-Φ1.2mm. By the use of wire tensile strength in the 90-100kg.

T Nail specifications are divided into:T32,T38,T45,T50, wire diameter: standard diameter for: Φ1.57mm, squash thickness: 1.35mm.T nails used in the range of wire diameter: Φ1.45-Φ1.5mm.

Automatic F/T brad nail making machine/staple production line
