automatic nail machine for 1 inch to 6 inch

Specifications 1.Automatic nails making machine

2.ISO9001 certificate

3.Adopt oil pipe lubrication

4.High speed

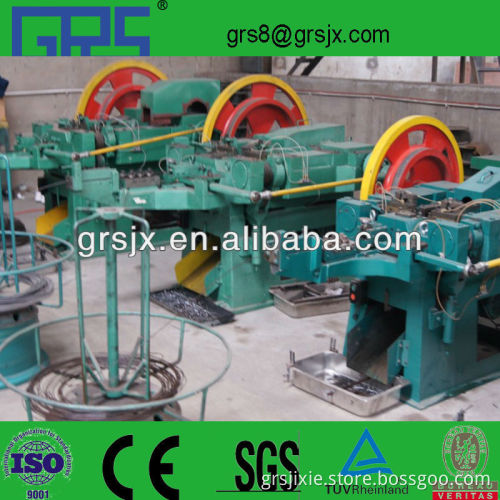

                                           Automatic nails making machine     Autoamtic nails making machine introduction:   Automatic wire nail machine is used for producing various normal nails and special nails. It adopts plunger structure and oil pipe lubrication so as to ensure the features such as high speed, low noise and less impact.   Available raw materials for automatic nails making machine:   Normal wire, new metal wire, waste rebar, sscrap teel bar, harddrawn wire, waste electrode, and other kind of waste steel.   Spare parts of automatic nails making machine:   Nail mold, nail knife, punch pin   Automatic nails making machine data:

Technical data	Unit	Z94 -5.5C	Z94 -4C	Z94 -3C	Z94 -2C	Z94 -1C
Dia of nail max	mm	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	150	100	75	50	25
Length of nail min	mm	80	50	30	16	9
Designed capacity	pcs/min	200	280	320	350	450
Motor power	kw	5.5	4	3	2.2	1.5
Weight(approx)	kg	2500	2000	1600	1400	1200
Overall dimension	mm	2400*1800*1700	2200*1600*1650	2000*1400*1400	1700*1300*1400	1500*1300*1200

Nail Making Machine     welcome to visit our factory  Ms dreamy skype: Dreamsong5  cellphone number: 008615932212928
