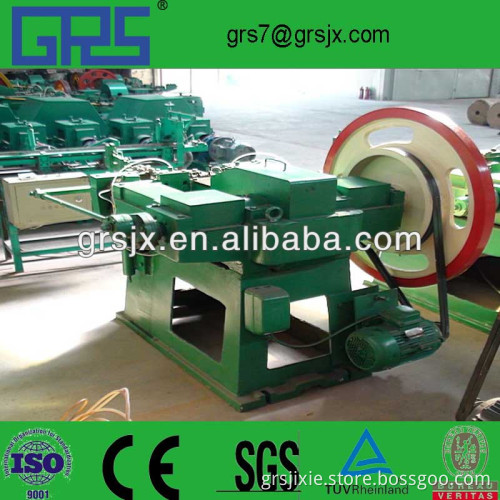

Automatic Wire Rod Nail Making Machine China Factory Supplier

Specifications Automatic Wire Rod Nail Making Machine China Factory Supplier

Best price

High qaulity

1c to 6c nail macking machine

Automatic Wire Rod Nail Making Machine China Factory Supplier   the new type nail making machine adopts plunger and oil pipe lubricating structure to ensure the hig h working speed, low noise and less impact. it is has the features of advanced design, compact conformation, and attractive apperance. It is easy and safe to operate.   Features of nail making machine:   (1)this has attractive appearance, rational structure and high efficiency.      It’s also durable in use, easy to maintenance with adequate durability. (2) All the main components are made of quality steel, such as shaft, cams and gear. (3) Use control handle at the inlet place in order to control incoming line at any time during operating. (4) A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded. (5) The nail making machine makes use of full automatic production procedure. Once start, it could make nails continuously.   Specifications:

Type	1C 711	2C 712	3C    713	4C    714	5C    715	6C   716	unit
Max length	10 to 20	20 to 50	50 to75	75 to 100	100 to150	150 to 210	mm
Max dia	1.6	2.5	3.2	4.3	5.0	7.0	mm
speed	450	300	280	250	200	180	piece/min
Motor power	1.5	2.2	3	3	7.5	11	kw
size	1350× 950× 1000	1650× 1150× 1100	1990× 1200× 1250	2280×1420 ×1330	2480×1520×1530	3510×1940×2015	mm
weight	900	1350	1600	1900	2500	5500	Kg

    Welcome to visit us!   Contact Person:MS Emily   Phone:0086-15227851895   Skype id:zhifangmiao   Website:www.lvzhoujx.com
