Nail Making Machinery: Screw Collating & Welded Coil Nail Collator

$7500.00 - $15000.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Tianjin port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10 Set/Sets per Month
Payment Type:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Port:	Tianjin port

Product Description

collated nail making machinery /screw

collating /weldedcoil nail collator

Simple Introduction:

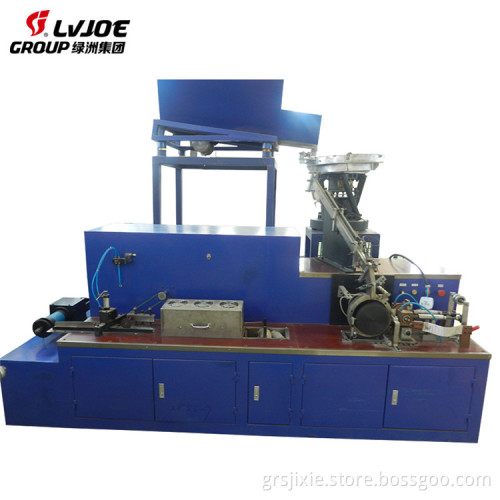

This coil nail welder is automatic welding equipment.The nails set in the vibrating feeder are aligned in orderly way under vibration.Through a feeding track,it slides into welding wheels where the nails are welded with 2 copper-plated welding wires to form collated nails.After that,the collated nail strip goes through automatic oil dipping and rust proof unit,drying and counter device,and next are rolled into coil nails.The coil nails are cut off according to a set number of nails,and each coil is finally bound with a rubber band and packed into cartons by operators.

Specification:

Technical Specifications

Model	CNC – N3	Applicable nail types	Common wire nails with smooth, annular, twisted shank
Applicable nail sizes	Capacity	Electronic control system	PLC Model: CPM2AH-60CDR-A (OMRON, Japan) + MPT terminal connection
Dia. x Length: Ø1.8-2.5mm/25-75mm Ø2.7-4.0mm / 75-100mm	Welding speed: at 1250 – 2000 pcs/min at 800 – 1800 pcs/min		Touch Screen Model:TP110VT, size: 10.4” or digital display screen
Coil spec. : - Angle - Nails per coil - Welding wires	15°- 16° 200 – 400 copper coated steel wire		VF inverter Model:S1100-2T-0.75KW SANCH, 1-phase, 220V
Applicable power supply	AC 380V, 50Hz, 3-phase (others available upon request, like: 220V, 60Hz, 3-phase)		MCU for welding process, Model: AT89C52 (ATMEL, USA)
Welding power supply	DC 290 – 330V	Compressed air	≥ 0.4 – 0.8Mpa
Welding current	1000 – 2000A (secondary side)	Cooling water	Pressure required: 0.1 – 0.2Mpa
Rated power	8KW	Net Weight	Approx. 1500kgs
Max. power	20KW	Dimensions	2350 x 900 x 2000mm (S) 2650 x 900 x 2000mm (L)
