Common Nails Machinery (Manufacturer, Factory)

Specifications Automatic Nail Machine

1.Length of nail:9-210mm

2.Diameter of nail:0.9-7mm

3.Certificate:CE/ISO

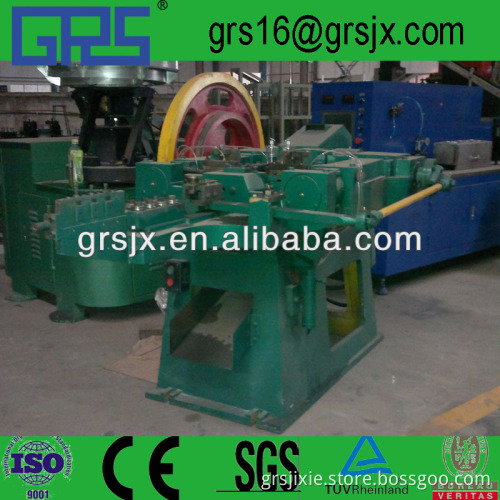

New Generation Automatic Nail Machine Supplier     This machine adopts plunger structure and oil pipe lubrication so  as to ensure the features such as high speed, low noise and less impact. Especially. it can make the high quality of clout nails and other special nails used for high speed coil nail welder and nail gun.     Availability of raw Material:   Normal wire, new metal wire, waste rebar, scrap steel bar, harddrawn wire, waste electrode, and other kind of waste steel.     Technical data of automatic corrugated nail machine:

Technical data	(Unit)	Z94 -1c	Z94 -2c	Z94 -  3c	Z94 -4c	Z94 -5c	Z94 -6c
Dia of nail max	mm	1.6	2.8	3.1	4.5	6	10
Dia of nail min	mm	0.9	1.2	1.8	2.8	4.1	5
Length of nail max	mm	25	50	70	100	200	350
Length of nail min	mm	9	16	30	50	100	180
Designed capacity	pcs/min	480	350	320	260	180	150
Motor power	kw	1.5	2.2	3	4	11	4
Weight(approx)	kg	375	1000	1200	1978	5500	1980
Overall dimensions	mm	1000×750×1000	1550×1000×1065	1970×1200×1200	2436×1512×1205	3220×1838×1545

                          Factory address:   Our factory is located in Shijiazhuang city of Hebei Province, China.   It is 280km south of Beijing.    There is CRH Train from Beijing to our city. It takes about 1 hour and 20 mins.     Contact person:   Cynthia   skype: cyhthia1202   Mob: 0086-13032613755   QQ: 314349393
