Direct Manufacturer High Speed Affordable Nail Making Machine

Direct Manufacturer High Speed Affordable Nail Making Machine

$3000.00

1-2 set
$2800.00

≥3 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T

Product Description

high speed and cheaper Nail making machine manufacture

The process required to produce a nail

Q195 steel → wire drawing → nail making → polishing → nail

1.Steel Wire drawing machine:

It is used to get the fine dia. we need.

Wire drawing diameter range: From 6.5mm-2.0mm.

direct manufacture for high speed and cheaper Nail making machine

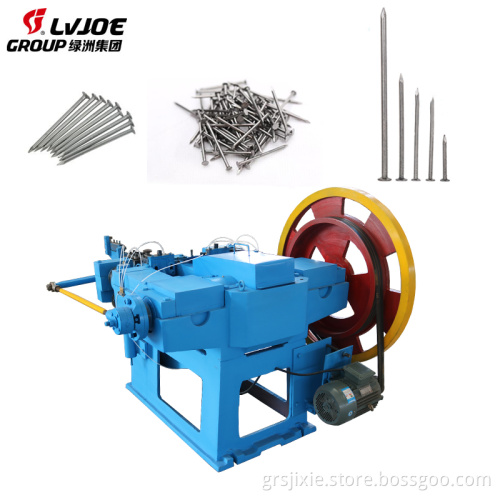

2.Automatic nail making machine:

Nail making range is:1-6 inch.Different size nail use different type making machine.

Machine type is from 1C ----6C

direct manufacture for high speed and cheaper Nail making machine

Parameter of the machine

Type	1c	2c	3c	4c	5.5c	6c
Max diameter of nail(mm)	1.6	2.8	3.4	4.5	5.5	6.0
Min diameter of nail(mm)	0.9	1.2	1.8	2.8	4.1	4.1
Max length of nail (mm)	25	50	75	100	150	180
Min length of nail(mm)	9	16	25	50	100	100
Nail making speed(pcs/min)	450	300	280	260	220	180
Motor power (kw)	1.5	2.2	3	4	5.5	11
Weight(kg)	750	950	1200	1900	2500	6000
Overall dimension(mm)	13509501000	165011501100	199012001250	228014201330	230014501500	351019402015

3.Nail polishing machine:

Different capacity,300kg,600kg,1ton,1.7ton,2ton.

direct manufacture for high speed and cheaper Nail making machine

4,Final product direct manufacture for high speed and cheaper Nail making machine

direct manufacture for high speed and cheaper Nail making machine

1. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.

2.The machines are putted in strong iron sheet case/wooden case,which is free of fumigation, lined with metal wire if necessary.

Quality Guarantee Terms

1.Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
2. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

direct manufacture for high speed and cheaper Nail making machine
