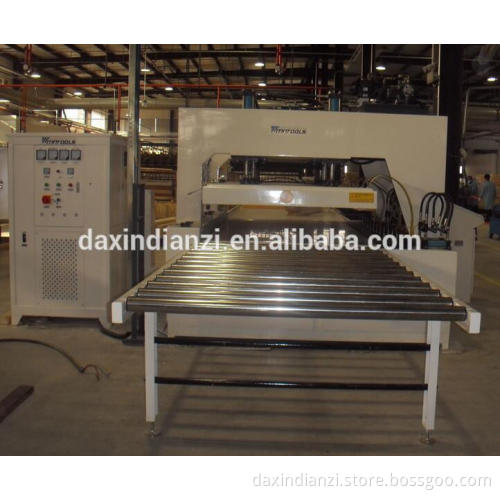

High Frequency board jointing machine /Clamp Carrier machine/Machine Clamp Transporteur

  High Frequency bending wood board jointing machine using high frequency heating ,two vega pressure ,used to plate splicing edge gluing ,the products widely used in furniture , wooden door ,integrated material fiedls .       Heating principle of High Frequency Dielectric  Dielectric ,known as insulator ,such as timber ,plastic ,grain ,rubber ,glass epoxy,glue agent ,water etc .High frequency dielecteic heating is to put dielectric in HF electric field whose direction changes constantly in very high speed , so that molecules of dielectric material rotate or vibrate in high speed in their original position ,and heat will be generated by intermolecular friction and collision for heating purpose .       Advantages:   (1) High output : Average timber output increased by 5%--10% . (2) High Frequency : Finish one piece of plate in 1--3 mins . It's more efficiency than general board jointing machine in winter .
(3) Saving energy : Low deformation , only heat glue line , wooden timber is unheated , To finish 1 clubic meter board only cost 5--30 Kw.H .
(4 ) Good quality : High frequency board jointing machine can examine the moisture content of wooden material during heating .
(5 ) Easy loading and unloading : Low labor intensity ; It can join vaties of wooden timber . such as solid board , chipboard ,and MDF, bug--killing and sterilization .             Specification:

Type	DXPB-50PZ	DXPB-61PZ	DXPB-70PZ
Workbench size (mm)	2500*1300	2500*1300	3000*1300
Spicing thickness (mm)	6-50	6-80	6-80
Upper pressure ( t )	28	28	28
Back pressure ( t )	22	33	42
Overall dimension ( mm)	8700*4400*2300	8700*4400*2300	10200*4400*2300
Weight ( t 0	5.5	6.5	7.5
Feeding mode	Auto	Auto	Auto

      Up plate adopts vertical llifting ,and installs the synchronous structure ,planeness degree is higher than common HF plane board jointing machine ,mostly improved the timver percentage outturn ,which is upgrade machine ,and can splice 6 mm thickness board .               Certifications      Packaging & Shipping    Packaging  : Standard export packing, plastic and foam, fixed by wood pallet, shipped in  container                       by sea .   Shipping : 15-20days after receive the advance payment       Our Services   The warranty time is one year for whole machine , we will be   free to maintain machine for user in whole service life .               Our company infomation    Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd.is a professional firm and factory specialized in the production of high frequency vacuum wood drying equipment  and other woodworking machinery in Hebei Province,China ,which is widely used in the areas of hardwood and softwood.   In 2003 , our firm successfully passed ISO9001 certification and CE certification ,which has greatly improved the general management Level. Daxin wood machines well known in China domestic .Abroad markets are Japan , Thailand ,Vietnam , USA , Iran ,Uganda ,  NewZealand , Bulgaria , , Indonesia , etc .     Our contact infos    Daxin Electronic Science And Technology Co., Ltd  Email : haibo10(at)vhaibo.com   Skype : xiaoyao101802(at)outlook.com Phone :+86-17731181474 QQ : 630191463   Contact person : Ms Vivian
