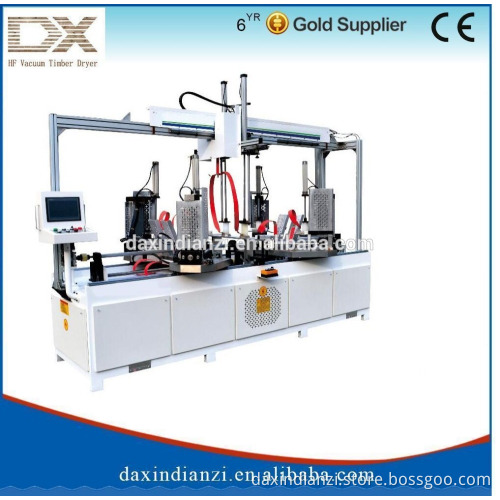

Wooden frame jointing machine with high frequency/High frequency wood splicing machine

Product Description Major use application : jointing of cabinets doors ,drawer ,picture frame ,mirror frame ,close frame ,and furniture frame with or without tenon . High Speed : glue is solidified in 2-20 seconds , and it can operate on the assembly line.  Saving labor : it's save a lot of time for loading and checking ,and operate without fixtures. High quality : no need to use staple gun and improved subsequent procedures ,the glue can solidified under high pressure . High precision : it adopt the ball screw and precision linear guide ,and control the machine with stepper motor. Error is ;ess than 0.5mm Low cost : a frame only costs about 0.003-0.04KWh Convenience : It adopts touch screen of human-machine interface ,easy change the dimension automatically , PIC automatically control, all data can display on touch screen, including pressure ,current ,heating time and cooling time ,tec.                                                                                                 HF wood frame jointing machine Specifications :

Type	VHBZK-1200*800	VHBZK-2000*800	VHBZK-2800*800	VHBZK-2800*1000	VHBZK-3400*1200
Max.working size (mm)	1200*800	2000*800	2800*800	2800*1000	3400*1200
Min.working size (mm)	80*80	130*130	130*130	130*130	200*200
Pressurizing mode	PRECISION LEAD SCREW
Overall dimension(mm)	2000*1180*1750	2760*1180*1750	3560*1180*1750	3560*1380*1750	4160*1580*1750
Weight	0.8	1.5	2	2.2	2.5

    Cyber version Wooden frame jointing machine should add " W" at the behind of its related machine's model number .
Packaging & Shipping     Packaging :Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea .   Shipping : 15-20days     Certifications         Our Services     The warranty time is one year for whole machine ,    We will be free to maintain machine for user in whole service life.       Our contact infos   Daxin Electronic Science And Technology Co., Ltd  Email : haibo10(at)vhaibo.com  QQ :630191463 Skype : xiaoyao101802(at)outlook.com Contact person : Ms Vivian
