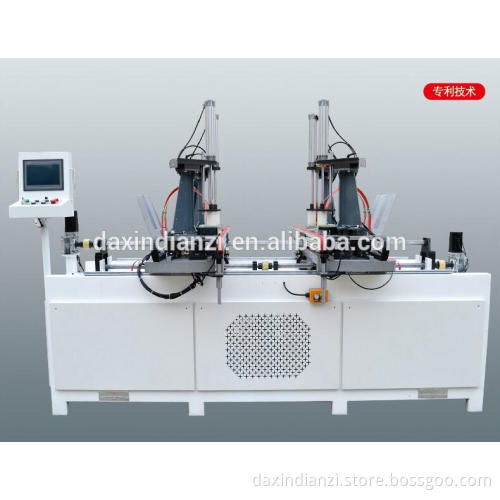

High frequency precision frame assembly machine

HF generator heating principle : HF generator is the core of dielectric heating equipment . it applies three phase alternating current to form hf oscillation electric field ( 6.78MHz ,27.12MHz) .Under this hf electric field ,the molecules like water ,glue or pvc will be polarized and form two poles (negatibe pole and positive pole ) .The electric field will change pole rapidly meanwhile all the moleculed will alsomove in very high speed .The friction and impact among molecules can manker material get heated in short time .Then the water will be vaporized ,glue becomes solid and pvc gets softened rapidly .     High frequency precision frame assembly machine fase assemble the 45°/90°/135° degree angle solid wooden cabinet door ,closet door and drawer ,only needs 6-20 seconds .Fast assemble the virous kinds of photo frame . Such as wrapping paper frame ,MDF frame ,solid wood frame ,painted frame . Newnetwork version assembly production and adjusting ,machine and realized remote control , which is can automatic workpiece size according to order list .   Function :Fast assemble cabinet  doors ,drawer ,picture frame ,mirror frame ,closet frame ,furniture frame with ot without tenon .   Advantage of high frequency precision frame assembly machine : High speed : Glue is solidified by heating in 2-20 seconds , which can operate flow work Effortlessness:It saved the time of complex assembly procedures and checking ,saving many tongs( F &panel tongs),hi-usage working site High quality:No need to use staple gun and improved subsequent procedures , the glue can fast cure under pressure sate , high gluing strength  High precusuin: adopt the ball screw and precision linear fuide ,and stepper motor controls accuracy,diagonal tolerance of frame≤0.5mm Low cost :One frame only costs about 0.003-0.01kw.h Convenience :adopttouch screen of human-machine interface ,easy adjusting the frame  size .PLC automaticallycontrol ,all of date can be displayed on touch scree ,includingpressure ,current ,heating time ,cooling time etc .     Specification:

Type	DXZK-1200*800	DXZK-2000*800	DXZK-2800*800	DXZK-3400*1200
Max workingsize (mm)	1200*800	2000*800	2800*800	3400*1200
Min workingsize (mm)	80*80	80*80	80*80	200*200
Pressurizing mode	Precision lead screw
Overall dimension (mm)	2000*1180*1750	2760*1180*1750	3560*1180*1750	4160*1580*1750
Weight ( T )	0.8	1	1.5	1.8

  Certification    Packaging & Shipping   Packaging :Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea . Shipping : 15-20days after receive the advance payment .        Our company infos  Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm and factory specialized in the production of high frequency vacuum wood drying equipment and other woodworking machinery inHebei Province,China ,which is widely used in the areas of hardwood and softwood.   In 2003 , our firm successfully passed ISO9001 certification and CE certification , which has greatly improved the general management Level. Daxin wood machines well known in China domestic .Abroad markets are Japan , Thailand ,Vietnam , USA , Iran ,Uganda ,  NewZealand , Bulgaria , , Indonesia , etc .     Our contact info    Daxin Electronic Science And Technology Co., Ltd  Email : haibo10(at)vhaibo.com   Skype : xiaoyao101802(at)outlook.com Phone :17731181474 QQ : 630191463 Contact person : Ms Vivian
