Mahogany wood vacuum drying methods and equipment selection

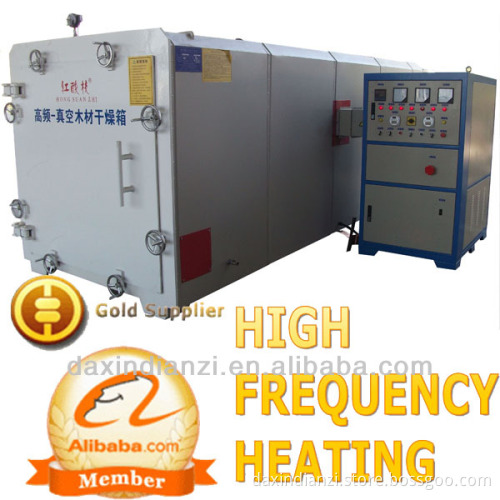

Specifications high frequency vacuum timber dryer chamber

1)Effective capacity: 3-10cbm

2)No cracking, no bending

3)For hardwood

3-10CBM capacity wood dryer,   1. Fast drying with excellent quality,   2. Suitable for all wood.   The High frequency vacuum wood dryer is a fastest way for drying. It has two advantages   1) High frequency heating, more equal, dry faster; 17times faster than wood dust burnt dryer. The drying cycle is mainly 20-30hours.   2) Vacuum condition, dry faster in lower temperature to eliminate the problem of split. It is more suitable for the large square wood material as well as hard board leaved tree material as well as other rare wood material.

Specification	HF machine power	Effective volume	Wood species	Wood maximum length	Shape dimension (mm)	Inner space (mm)	Timber cart (mm)
GZ-3.0 II-DX	10KW	3.3m³	All wood	3M	4330 *1716 *1806	3600 *1500 *1500	3000 1100 1000
GZ-4.0 II-DX	10KW	4.4m³		4M	5330 *1716 *1806	4600 *1500 *1500	4000 1100 1000
GZ-6.0 II-DX	20KW	6m³		5M	6465 *1916 *2006	5600 *1700 *1700	5000 1200 1000
GZ-8.0 II-DX	30KW	7.8m³		6M	7605 *2016 *2006	6600 *1700 *1700	6000 1200 1100
GZ-10.0 II-DX	50KW	10.8m³		6M	7500 2140 2240	6600 *1900 *1900	6000 1500 1200
