High frequency vacuum wood dryer chamber

Specifications High frequency vacuum wood dryer chamber

1.Dryer oven: 3-20 m3

2.Generator:10-50KW

3.Fast drying

4.Save cost

High frequency vacuum wood dryer chamber       High frequency vacuum wood dryer chamber
1.Dryer oven: 3-20 m3
2.Generator:10-50KW
3.Fast drying
4.Save cost   Daxin Electronic Science And Technology Co., Ltd. is one of the leading manufacture factory of  high frequency vacuum wood drying equipment and high frequency generator in Hebei Province,China.In this industry more than 20 years.we have the patent certification and Ce certification .   It is the newest drying technology in woodworking machinery industry. We can supply capacity 3cbm,4cbm,6cbm,8cbm,10cbm,12cbm,15cbm,20cbm . It sold  in Japan,Thailand,Vietnam,USA,Uganda,New Zealand,Bulgaria etc.Now very popular drying technology in China. Carrie Wang   skype:haibo_carrie Phone:86-15933619081      Technology data for squared vacuum wood dryer oven when working (10 cubic meters):

Main Date of High frequency vacuum timber dryer machine
Model:	GZ-10.0III-DX
Power:	~ 380 50HZ Three-phase four-wire system
Type of work:	high-frequency heating, vacuum dehydration
External size(m):	7.6(L)×2.1(W)×2.2(H)
Inner size(m):	6(L)×1.5(W)×1.1(H)
Input power:	50 (Kw)
Outpower	40(Kw)
Weight:	9500(Kg)
Working vacuum:	0~-0.09MPa
Heating mode:	dielectric type
Applicable materials:	all kinds of wood
Temperature range:	depending on the technology needs
Dry medium mobile:	direct heat
Applicable field:	wood drying
Water evaporation capacity:	310 KG / 24 hours (conditions: high frequency power 40 KW, vacuum degree:-0.08MPa, condensing temperature: 30 centigrade)

      Pictures         Sizes: 3/4/6/8/10 cubic meter or larger  ones

Tape	Effective capacity	Power of high frequency	Maximum effective capacity	Applicable materail	Notes
GZ-3.0III-DX	3.3m3	10KW	3.0m(L)*1.1m(W)* 0.5m~1.0m(H)	All kinds of wood,  especial hard wood.   E.g.: wood, timber,  lumber, timbering,  lignum	a.High speed: much more quicker than  the common machine   b.Full-automatic
GZ-4.0III-DX	4.4m3	10KW	4.0m(L)*1.1m(W)* 0.5m~1.0m(H)
GZ-6.0III-DX	6.0m3	20KW	5.0m(L)*1.2m(W)* 0.5m~1.0m(H)
GZ-8.0III-DX	8.0m3	30KW	6.0m(L)*1.3m(W)* 0.5m~1.1m(H)
GZ-10.0III-DX	10.0m3	40KW	6.0m(L)*1.5m(W)* 0.5m~1.1m(H)

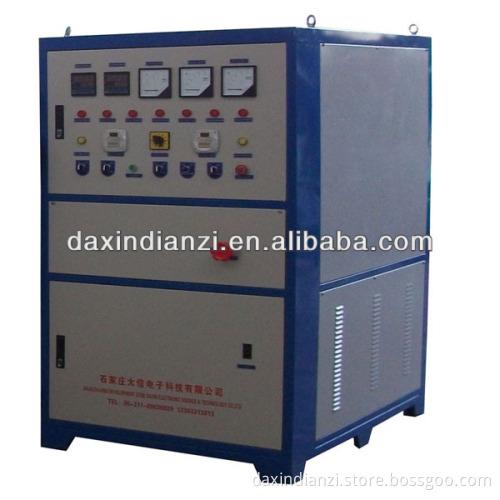

        High frequency generator     The data of different High Frequency Generators:

Model Item GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A Supply voltage 380V Input power 10KVA 16KVA 25KVA 30KVA 40KVA 50KVA Oscillation power 6KW 10KW 15KW 20KW 25KW 30KW Oscillation frequency 6.78MHz Rectifier Three-phase bridge silicon rectifier Overall dimensions 1000mm(L)*900mm(W)*1700mm(H) Net weight 280KG 350KG 450KG 500KG 550KG 600KG     The squared vacuum wood oven can meet more lower high frequency generator to save cost!   The advantages of the DXHF-vacuum wood dryer:       Cart for wood      Outer orbit    Aluminum net      More pictures   Finished wood:               To dry perfect wood!   Welcome to understand more about our squared wood dryer machine!   Send your message to this supplier * From: * To: Ms. Semele An * Messages: Enter between 20 to 4,000 characters. Related Products High frequency vacuum Wood drying kiln suitable for all wood Electronic microwave oven with low power and high capacity Timber drying chamer and hf generator with the lowest cost and good price High Frequency Wood Chip Dryer With Rapid Heating Features Related Keywords Related Keywords vacuum wood dryer chamber , humidity dry chamber , wood drying chamber vacuum wood dryer chamber , humidity dry chamber , wood drying chamber You May Also Like You May Also Like High frequency vacuum Wood drying kiln suitable for all wood Electronic microwave oven with low power and high capacity Timber drying chamer and hf generator with the lowest cost and good price High Frequency Wood Chip Dryer With Rapid Heating Features wood dryer machine uniform heating,no cracking,fast drying HF vacuum dryer Related Products High frequency power supply and wood Vacuum plant HF vacuum wood dryer kiln HF Vacuum Drying Furnace, Used for Drying All Kinds of Wood professional manufacture of vacuum dryer for wood Compact Structure Timber Drying Kiln Of Authentic Quality Product Categories HF Wood veneer dryer(9) HF vacuum dryer 12CBM(32) HF vacuum dryer 10CBM(31) HF vacuum dryer 8CBM(32) HF vacuum dryer 6CBM(32) HF vacuum dryer 4CBM(31) HF vacuum dryer 3CBM(32) High frequency vacuum dryer(32) High frequency generator(7) Other(257) HF vacuum dryer 12CBM(32) HF vacuum dryer 10CBM(31) HF vacuum dryer 8CBM(32) HF vacuum dryer 6CBM(31) HF vacuum dryer 4CBM(30) HF vacuum dryer 3CBM(28) High Frequency Vacuum dryer(9) High Frequency generator(25) DRYER MACHINE(14) Other(25) HF Board Jointing Machine(24) HF Joint Frame Machine(15) HF Press Machine(4)
