6 meter max wood length vacuum wood dryer machine

Specifications Wood Chip Dryer, HF Working Principle,Good At Drying Thick Wood

1: Evenly heating

2: Cost effective

3: High efficiency

Wood Chip Dryer, HF Working Principle,Good At Drying Thick Wood

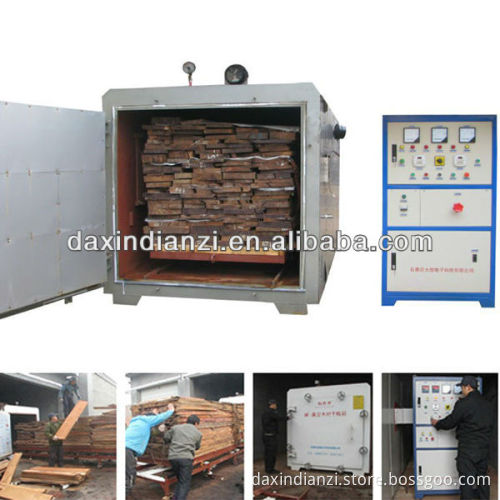

  GZ-10.0-III-DX HIGH FREQUENCY-VACUUM WOOD KILN DRYER is a new generation wood drying equipment. This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time. This equipment adopts PLC programming control, drying chamber equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system, it is more convenient to choose lumber drying procedure and applicable for drying all kinds of wood. The main control valve adopts pneumatic valve technology, this technology have advantages like steady, long serve life and low failure rate. The main advantage of our wood drying equipment: short drying cycle, super quality, cost effective and eco-friendly.   Advantages of high frequency vacuum wood kiln dryer:  1: Short drying cycle--- HF kiln dryer greatly reduced drying time It does not require heat conduction,  inside and outside of wood timber is heated at same time; During the heating process, there is staged temprature difference between inside and outside of wood timber, The vapor pressure difference caused by this surface and the interior temperature difference makes the interior moisture to move towards the surface.  for this reason, the drying time is much more shorter than traditional ways 2: Good drying effect--- hence the wood is drying under vacuum condition, this will decrease the drying tempreture. Wood drying at low temperature highly humid environment enable complete free from cracks & distortions as well as retain its hue & luster. Under connstant evenly heating there is not any cracking or bendind appeared. The moisture content of wood will be maintain a certain percent steadily after drying by hf kiln. 3: Easy Operation--- HF kiln dryer is fully automatic, you just push the cart loaded with wood into the tank, close the tank, and press the start button. Operation is automatically performed in accordance to the preset program 4: Energy Saving--- The input power is much lower than other drying machine 5: Cost-Effective---  Low input and high out put    Specification of high frequency vacuum wood kiln dryer: operating principle: HF medium heating plus vacuum dewatering
Size: 7500*2100*2100mm  Power input: 50kw
Drying medium: direct heating
Heating mode: electrical medium
Application: drying all kinds of wood
Temperature range: subject to request
Water evaporation: 310 KGS /24hour condition: density of wood 0.75, output power 40KW, temperature of condenser:30 °C , vacuum degree— 0.08MPa) )
Types: manual, automatic
Capacity: 10m3 ,  (optional: 3m3 4 m3, 6 m3, 8 m3)

Model	Power	Effective Volume	Applications	Max Length of Wood	Outer Size
GZ-3.0III-DX	10KW	3m3	all kinds of wood	3m	4330*1716*1806mm
GZ-4.0III-DX	10KW	4m3	all kinds of wood	4m	5330*1716*1806mm
GZ-6.0III-DX	20KW	6m3	all kinds of wood	5m	6465*1916*2006mm
GZ-8.0III-DX	30KW	8m3	all kinds of wood	6m	7605*2016*2006mm
GZ-10.0III-DX	40KW	10m3	all kinds of wood	6m	7605*2116*2106mm
