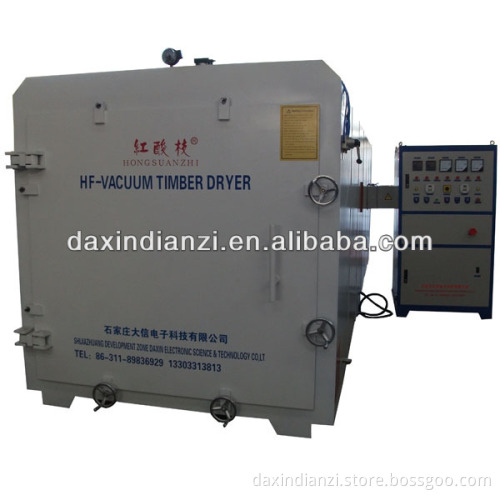

Timber dryingkiln with high frequency

Specifications Timber dryingkiln with high frequency

1.Fast drying

2.No cracking,no bending

3.Save time and save cost

Timber dryingkiln with high frequency   All sizes of High frequency vacuum wood dryer machine:        More technology data (for example:a 4.0 cubic meter one)   Main data for High frequency vacuum wood dryer oven ( Model: GZ-4.0II-DX)   Capacity: 4.0 cubic meter   Type of work: high-frequency heating, vacuum dehydration   External size: 5330mm×1716mm×1806mm    Weight: 4300 KG   Input power: 12 KW   Dry medium: direct heat   Heating mode: dielectric type   Applicable materials: all kinds of wood   Temperature range: depending on the technology needs   Dry medium mobile: direct heat   Applications: wood drying   Water evaporation capacity: 90 KG / 24 hours (conditions: high frequency power 10 KW, vacuum    degree-0.08MPa, condensing temperature 25 °C)    Other sizes: 3/6/8/10 cubic meter or larger ones as client’s customization       Main data for High frequency generator ( for a 4.0 cubic meter )    Power: 10KW   Operation mode: continuous   Applications: to heat and dry timber   Serviceable material: A variety of available   Area: 1 square meter   External size: 950×1050×1750   Weight: 200 KG   Other sizes: GJJ-20-DX(Power:20 KW) , GJJ-30-DX(Power:30 KW),     GJJ-50-DX(Power:50 KW) or others as client’s customization             Technical data:

Capacity of dry oven	3 cubic meters
Vacuum degree	0-0.093 MPa
Drying temperature	≤90°C
Original moisture content of wood	40%-60%(W/W)
Final moisture content of wood	18%-20% or could be setting as per-request
Maximum dehydration rate	90 KG / 24 hours
Power of high frequency machine	10KW
Frequency of high frequency machine	6.78MHz
Power input of vacuum pump	4KW
Maximum input total power	13KVA

                          Payment & Shipping Terms:

Minimum Order Quantity:	1 set/sets
Port	Tianjin port, China
Packaging Details	Standard export packaging
Delivery Time	10-25days
Payment terms	L/C, T/T, Western Union, Money Gram
Supply Ability	7 set/sets per month
