High frequency vacuum timber manufacturer made in China

Specifications High frequency vacuum timber manufacturer made in China

1.save time and cost

2.high outturn percentage

3.eco-friendly

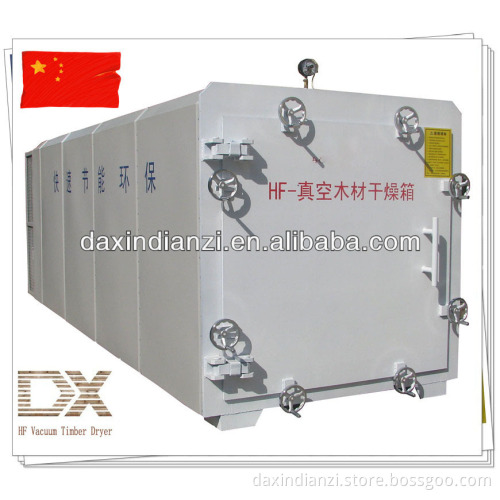

High frequency vacuum timber manufacturer made in China   DXHF has engaged in HF field for more than 20 years and is the first brand in China. Cooperation and exchange technology with international HF expert can supply yearly the top quality equipment and quote reasonably. DXHF vacuum dryer has two parts, one part is the high frequency generator and the other part is the vacuum dryer oven.   High frequency generator heating principle
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.   The drying principle High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood. Automatic type function Adopts optical fiber testing temperature, accuracy, it is effectively avoid High frequency interfering measuring instrument. It adopts weight method and Kiln moisture meter, which can test moisture rate online The container is handled by professional chemical anticorrosion, no rustiness, so that save the container maintenance and avoid pollute the timber Save labor, automatic feeding and discharging. Built-in cooling system, lower the drying cost.     Why do we choose High Frequency Vacuum Wood Dryer Machine? More specification about the dryer machine

Model	GZ-3.0III-DX	GZ-4.0III-DX	GZ-6.0III-DX	GZ-8.0III-DX	GZ-10.0III-DX	GZ-12.0III-DX
Capacity (CBM)	3.3	4.4	6.6	8.64	10.08	12.48
Out Dimension (mm)	4400 * 1716 * 1806	5400 * 1716 * 1806	6500 * 1916 * 2006	7600 * 2000 * 2090	8600 * 2000 * 2090	9600 * 2000 * 2090
Inside dimension (mm)	3600 * 1500 * 1500	4600 * 1500 * 1500	5700 * 1700 * 1700	6800 * 1750 * 1750	7800 * 1750 * 1750	8800 * 1750 * 1750
Timber cart (mm)	3000 * 1100 * 1000	4000 * 1000 * 1000	5000 * 1200 * 1000	6000 * 1200 * 1200	7000 * 1200 * 1200	8000 * 1300 * 1200
Max Length of Wood	3m	4m	5m	6m	7m	8m
High Frequency	6.78MHz
Input Power	15KW	15KW	30KW	40KW	50KW	50KW
output power	10KW	10KW	20KW	30KW	40KW	40KW
Vacuum pressure	- 0.093MPa
Weight(kg)	4000	5000	7000	9000	11000	13000
Packing	20GP	40GP	40HQ	40HQ	40HQ	40HQ
Kiln Temp	Vacuum kiln Drying temperature: ≤90°C
Moisture	From 90% to 6% ,could be setting as per-request
Drying time	2-7 days
Application	Apply for all hardwood species

    More pictures about the samples   Click here to get more information!!!
