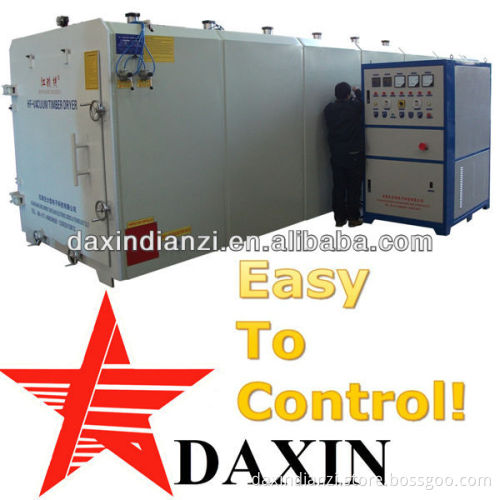

Beach wood drying kiln machine

Specifications Beach wood drying kiln machine

1.Capacity:3/4/6/8/10 cubic meters

2.4-7 days one time

Beach wood drying kiln machine       High Frequency Vacuum Wood Dryer Machine is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions .   Technology data (8 cubic meters): Capacity of dry oven: 8 cubic meters Vacuum degree: 0---0.093Pa or according to the need Drying temperature: ≤90°C Final moisture content of wood: 18%-20% or could be setting as per-request Maximum dehydration rate: 220KG / 24 hours Power of high frequency machine:30KW Frequency of high frequency machine:4MHz Power input of vacuum pump: 4KW Maximum input total power:40KVA    Different sizes of high frequency vacuum wood dryer machine:

Item. No.	Capacity of dryer kiln (cubic meter)	Maximum Dehydration Rate	Power of high frequency machine	Vacuum degree	Shape dimension
001	3.3m3	90KG/24h	10KW	0--0.093MPa or according to the need	L3000*W1100mm
002	6m3	180KG/24h	20kW	0--0.093MPa or according to the need	L5000*W1200mm
003	7.8m3	220KG/24h	30KW	0--0.093MPa or according to the need	L7500*W2000mm
004	10m3	310KG/24h	40KW	0--0.093MPa or according to the need	L7500*W2100mm

    Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High-frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level.                   Thank you for visiting our site and welcome to contact with us !
