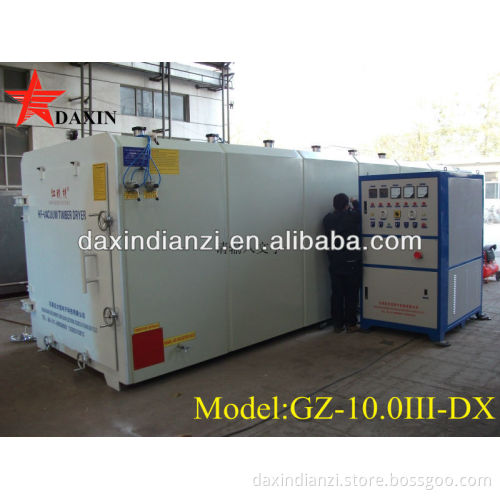

High frequency vacuum timber dryer kiln with model 10 cubic meter size

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications 1.Size:3-10 cubic meter

2.Electric power

3.To dry all kinds of wood

4.Without cracking and bending

High frequency vacuum timber dryer kiln with model 10 cubic meter size Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level. All sizes of High frequency vacuum wood dryer machine:

Tape	Effective capacity	Power of high frequency	Maximum effective capacity	Applicable materail	Notes
GZ-3.0II-DX	3.3m3	10KW	3.0m(L)1.1m(W) 0.5m~1.0m(H)	All kinds of wood, especial hard wood. E.g.: wood, timber, lumber, timbering, lignum	a.High speed: 20-30 times than the common ones b.Vacuum degree: from -0.08MPa to -0.093 MPa c.Full-automatic
GZ-4.0II-DX	4.4m3	10KW	4.0m(L)1.1m(W) 0.5m~1.0m(H)
GZ-6.0II-DX	6.0m3	20KW	5.0m(L)1.2m(W) 0.5m~1.0m(H)
GZ-8.0II-DX	8.0m3	30KW	6.0m(L)1.3m(W) 0.5m~1.1m(H)
GZ-10.0II-DX	10.0m3	40KW	6.0m(L)1.5m(W) 0.5m~1.1m(H)

Main technology data of a 10.0 size: 1. Capacity of dry oven: 10 cubic meters 2. Vacuum degree: 0—— -0.093MPa or according to the need 3. Drying temperature: lower than 90 Degree Celsius 4. Final moisture content of wood: setting as per-request 5. Maximum dehydration rate: 310KG / 24 hours 6. Power of high frequency machine:40KW 7. Frequency of high frequency machine:4MHz 8. Power input of vacuum pump: 4KW 9. Maximum input total power:50KVA The advantages of our dryer machine:

Quick heating	It does not require heat conduction, inside and outside of wood timber is heated at same time.
Fast dehydration	During the heating process, there is staged temperature difference between inside and outside of wood timber, this will speed up the water movement from inside wood to outside wood (the principle is to the convencontrary tional heating).
Good quality of final wood	There will be no cracking, bending and color change by taking control of heating speed, relative vacuum degree & condensing rate.
Strong adaptability	High frequency vacuum drying can realize not only cold drying but hot drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood.
High usage	Square designed drying box supplies more space utilization. It is suitable for different shaped wood.
Cost saving	Fast temperature raise and higher space utilization takes lower cost than traditional ways.
Eco-friendly	This machine does not pollute the environment.
Full-automatic	UA Unattended Automatic drying process, very easy to handle.
