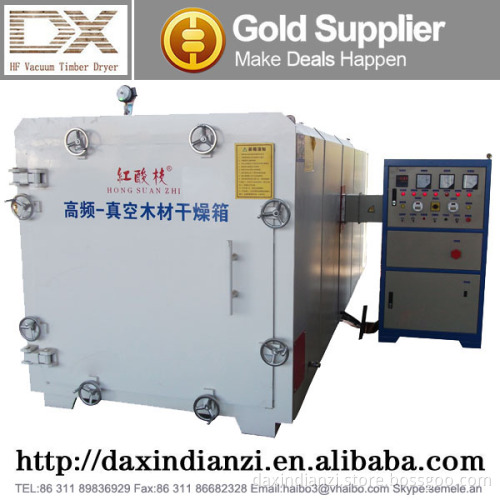

High frequency vacuum Wood drying kiln suitable for all wood

Specifications High frequency vacuum Timber drying kiln

1.Fast drying with excellent quality,

2.Suitable for all wood.

3.Wood furniture

High frequency vacuum wood dryer machine Two main parts of the machine: 1) High frequency generator 2) Vacuum wood dryer oven To meet the specification of wood with the length 5.5-6m, the width 1-1.2m and height 0.7-1m High Frequency Vacuum Wood Dryer Machine is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions.  Specification Technology data (3 cubic meters): 1. Capacity of dry oven: 3 cubic meters 2. Vacuum degree: 0——-0.093Pa or according to the need 3. Drying temperature: ≤90°C 4. Final moisture content of wood: 18%-20% or could be setting as per-request 5. Maximum dehydration rate: 90 KG / 24 hours 6. Power of high frequency machine: 10KW 7. Frequency of high frequency machine: 6.78MHz 8. Power input of vacuum pump: 4KW 9. Maximum input total power: 13KVA Technology data (8 cubic meters): 1. Capacity of dry oven: 8 cubic meters 2. Vacuum degree: 0——-0.093Pa or according to the need 3. Drying temperature: ≤90°C 4. Final moisture content of wood: 18%-20% or could be setting as per-request 5. Maximum dehydration rate: 220KG / 24 hours 6. Power of high frequency machine: 30KW 7. Frequency of high frequency machine: 4MHz 8. Power input of vacuum pump: 4KW Maximum input total power: 40KVA Technology data (10 cubic meters): 1. Capacity of dry oven: 10 cubic meters 2. Vacuum degree: 0——-0.093Pa or according to the need 3. Drying temperature: ≤90°C 4. Final moisture content of wood: setting as per-request 5. Maximum dehydration rate: 310KG / 24 hours 6. Power of high frequency machine: 40KW 7. Frequency of high frequency machine: 4MHz 8. Power input of vacuum pump: 4KW 9. Maximum input total power: 50KVA Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

Specification	HF machine power	Effective volume	Wood species	Wood maximum length	Shape dimension (mm)	Inner space (mm)	Timber cart (mm)
GZ-3.0 II-DX	10KW	3.3m³	All wood	3M	4330 *1716 *1806	3600 *1500 *1500	3000 1100 1000
GZ-4.0 II-DX	10KW	4.4m³		4M	5330 *1716 *1806	4600 *1500 *1500	4000 1100 1000
GZ-6.0 II-DX	20KW	6m³		5M	6465 *1916 *2006	5600 *1700 *1700	5000 1200 1000
GZ-8.0 II-DX	30KW	7.8m³		6M	7605 *2016 *2006	6600 *1700 *1700	6000 1200 1100
GZ-10.0 II-DX	50KW	10.8m³			7500 2140 2240	6600 *1900 *1900	6000 1500 1200
