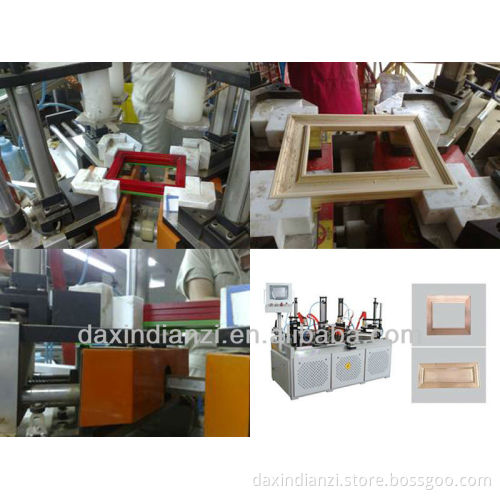

High frequency precision frame assembly machine for wood

Specifications High frequency precision frame assembly machine

1) High speed

2)Effortlessness

3)High quality and high precision

4)Low cost

High frequency precision frame assembly machine Advantages: 1.High precision 2.Efficiency 3.High-quality(HQ) 4.Operation convenient 5.Reliable performance 6.Low cost Application:Applies to wooden frame rapid bonding combination, used for photo frame,  drawer, ambry, furniture cupboard door, wood and other fields, and ensure the machining accuracy.

Model	1200×800
Maximum machining range(mm)	1200×800
Minimum dimension(mm)	80×80
Size constraint conditions(mm)	Length-width<400
High frequency maximum input power(kw)	8
High frequency Maximum oscillation power(kw)	5
Pay-off	Hand movement
Pressure way	4 corners with stepping motor
Group box form	45°
Human-computer interface	Touch screen
Control system	PLC
Overall dimensions	1960(L)×1200(w)×1700(H)
Quantity(T)	0.8
