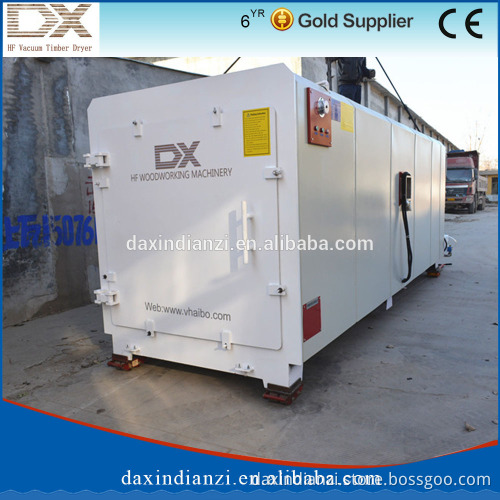

Square shape High frequency vacuum wood dryer, Woodworking drying machine

  Product Description   Woodworking Machine, HF Vacuum Wood Dryer Kiln   1:   Uniform heating
2:   Speedy drying without cracking.   High Frequency Vacuum Wood Machine DXHF vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

Model	GZ-3.0III-DX	GZ-4.0III-DX	GZ-6.0III-DX	GZ-8.0III-DX	GZ-10.0III-DX	GZ-12.0III-DX
Capacity	3.3 CBM	4.4 CBM	6.6 CBM	8.64 CBM	10.08 CBM	12.48 CBM
Out Dimension (mm)	L4400 W1716 H1806	L5400 W1716 H1806	L6500 W1916 H2006	L7600 W2000 H2090	L8600 W2000 H2090	L9600 W2000 H2090
Inside dimension (mm)	L3600 W1500 H1500	L4600 W1500 H1500	L5700 W1700 H1700	L6800 W1750 H1750	L7800 W1750 H1750	L8800 W1750 H1750
Timber cart (mm)	L3000 W1100 H1000	L4000 W1000 H1000	L5000 W1200 H1000	L6000 W1200 H1200	L7000 W1200 H1200	L8000 W1300 H1200
Max Length of Wood	3m	4m	5m	6m	7m	8m
High Frequency	6.78MHz	6.78MHz	6.78MHz	6.78MHz	6.78MHz	6.78MHz
Input Power	15KVA	15KVA	30KVA	40KVA	50KVA	50KVA
Oscillation power	10KW	10KW	20KW	30KW	40KW	40KW
Vacuum pressure	-0.093MPa	-0.093MPa	-0.093MPa	-0.093MPa	-0.093MPa	-0.093MPa
Weight(kg)	4000	5000	7000	9000	11000	13000
Packing	20GP	40GP	40HQ	40HQ	40HQ	40HQ
Kiln Temp	Vacuum kiln Drying temperature: ≤90°C
Moisture	From 90% to 6% ,could be setting as per-request
Drying time	2-7 days
Application	Apply for all hardwood species

  Detailed Images   Advantages Advantages:   Quick heating--- It does not require heat conduction,  inside and outside of wood timber is heated at same time;
Fast dehydration ---During the heating process, there is staged temperature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood; Drying time is 1/5 compare with tranditional wood drying method.
High quality--- there will be no crackings , bending and color change by taking control of heating speed, relative vacuum degree & condensing rate.
Strong adaptability---High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood
--- Square designed drying box supplies more space utilization. it is suitable for different shaped wood
Cost saving --- Fast temperature raise and higher space utilization takes lower cost than traditional ways.
Eco-friendly --- This machine does not pollute the enviroment
Full-automatic ---UA Unattended Automatic drying process, very easy to handle   Packaging & Shipping Packing & Delivery: Packing:  standard export packing with plastic film in one container or as customers' request.  Delivery:   within 10-20 days after receipt of prepayment   Our engineer will install the machine for the buyers Instruction Book is inside with the machine.  Company Information Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High-frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level.   Honor contact us China Haibo International Co.,Ltd
