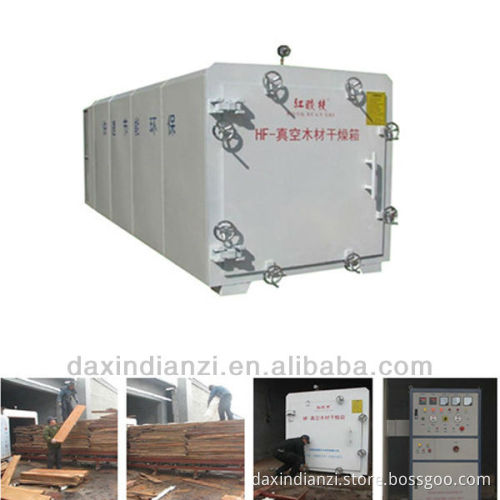

high frequency vacuum wood,timber,lumber cabinet dryer

Specifications Woodworking drying machinery

1,High outturn percentage

2,Environmental protection

3,High efficiency

4,Flexible and simple

3-10 cubic meters high frequency vacuum timber dryer equipment 1. Fast drying with excellent quality, 2. Suitable for all wood. 3. Effective capacity: 3-10cbm 4. No cracking, no bending Specification 1. Equipment’s compose: high-frequency generator +vacuum oven +timber cart+ outer orbit 2. Effective capacity: 3-10M3   3. Vacuum: 0 ~ -0.093Mpa 4. Operation mode: continuous system 5. Heating method: dielectric type 6. Suit for using: all kind of wood 7. Power: 10-50kw 8. Drying medium: direct heating 9. Work type: high frequency 10. Application fields: drying of wood 11. Water evaporation capacity: 90KG/24h 12. Weight: 4000-10000kgs   13. Color: customer could chose Advantages: The High frequency vacuum wood dryer is a fastest way for drying. It has two advantages 1) High frequency heating, more equal, dry faster; 17times faster than wood dust burnt dryer. The drying cycle is mainly 20-30hours. 2) Vacuum condition, dry faster in lower temperature to eliminate the problem of split. It is more suitable for the large square wood material as well as hard board leaved tree material as well as other rare wood material. Packaging Detail: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

Model	GZ-3.0III-DX	GZ-4.0III-DX	GZ-6.0III-DX	GZ-8.0III-DX	GZ-10.0III-DX
Capacity(CBM)	3.3	4.4	6	8	10.8
Out Dimension	4330*1716 *1806mm	5330*1716 *1806mm	6465*1916 *2006mm	7605*2016 *2006mm	7500*2140 *2240mm
Inside dimension	3600*1500 *1500mm	4600*1500*1500mm	5600*1700 *1700mm	6600*1700 *1700mm	6600*1900 *1900mm
Timber cart (mm)	3000*1100 *1000	4000*1000*1000	5000*1200 *1000	6000*1300 *1100	6000*1500 *1100
Max Length of Wood	3m	4m	5m	6m	6m
High Frequency	6.78MHz	6.78MHz	6.78MHz	6.78MHz	6.78MHz
Input Power	11KW	11KW	30KW	40KW	50KW
output power	10KW	10KW	20KW	30KW	40KW
Vacuum pressure	- 0.092MPa	- 0.092MPa	- 0.092MPa	- 0.092MPa	- 0.092MPa
Weight(kg)	4000	5000	7000	8500	9500
