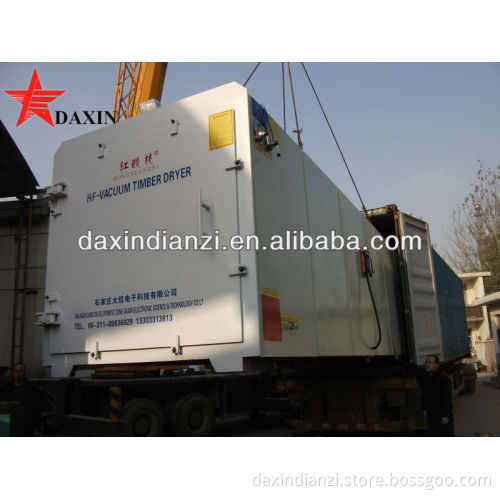

Wood dryer machine with vacuum heat press

Specifications 1.To dry perfect wood

2.Wood oven:3-10 m3

3.Generator:10-50KW

4.Vacuum oven and high frequency technology

Wood dryer machine with vacuum heat press     Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High-frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level.     Main sizes of High frequency vacuum wood dryer machine

Tape	Effective capacity	Power of high frequency	Maximum effective capacity	Applicable materail	Notes
GZ-3.0III-DX	3.3m3	10KW	3.0m(L)*1.1m(W)* 0.5m~1.0m(H)	All kinds of wood,  especial hard wood.   E.g.: wood, timber,  lumber, timbering,  lignum	a.High speed    b.Full-automatic
GZ-4.0III-DX	4.4m3	10KW	4.0m(L)*1.1m(W)* 0.5m~1.0m(H)
GZ-6.0III-DX	6.0m3	20KW	5.0m(L)*1.2m(W)* 0.5m~1.0m(H)
GZ-8.0III-DX	8.0m3	30KW	6.0m(L)*1.3m(W)* 0.5m~1.1m(H)
GZ-10.0III-DX	10.0m3	40KW	6.0m(L)*1.5m(W)* 0.5m~1.1m(H)

      Main data of High frequency vacuum wood dryer machine

Model:	GZ-10.0III-DX
Power:	~ 380 50HZ Three-phase four-wire system
Type of work:	high-frequency heating, vacuum dehydration
External size(m):	7.6(L)×2.1(W)×2.2(H)
Inner size(m):	6(L)×1.5(W)×1.1(H)
Input power:	50 (KW)
Outpower	40(KW)
Weight:	9500(Kg)
Working vacuum:	0~-0.09MPa
Heating mode:	dielectric type
Applicable materials:	all kinds of wood
Temperature range:	depending on the technology needs
Dry medium mobile:	direct heat
Applicable field:	wood drying
Water evaporation capacity:	310 KG / 24 hours (conditions: high frequency power 40 KW, vacuum degree:-0.08, condensing temperature: 30 centigrade)

              The advantages of the High frequency vacuum wood dryer:  Quick heating: It does not require heat conduction, inside and outside of wood timber is   heated at same time.    Fast dehydration: During the heating process, there is staged temperature difference between  inside and outside of wood timber, this will speed up the water movement from inside wood  to outside wood (the principle is contrary to the conventional heating).   Good quality: there will be no cracking, bending and color change by taking control of   heating speed, relative vacuum degree & condensing rate.   Strong adaptability: High frequency vacuum drying can realize not only cold drying but hot   drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood.   High usage: Square designed drying box supplies more space utilization.  It is suitable for  different shaped wood.    Cost saving: Fast temperature raise and higher space utilization takes lower cost than  traditional ways.   Eco-friendly: This machine does not pollute the environment.   Full-automatic: UA Unattended Automatic drying process, very easy to handle.
