Building Steel Structure

We are steel structure material produce factory, have done many years of domestic and abroad project,

Hope have chance cooperate with you .

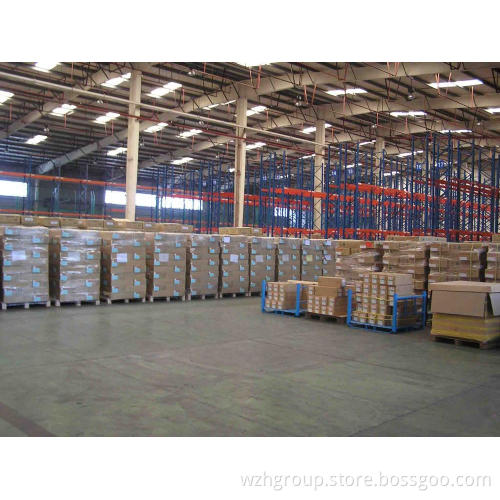

ISO9001 prefab steel structure/steel frame warehouse/ light steel frame structure

1. Brief instruction of the prefabricated steel strucutre/building/ warehouse:

Light steel structure project includes three process:design, producing and construction. It main

has three systems: main steel structure system, secondary steel structure system and envelope system...

2. The following the detailed spefication of the prefabricated steel structure/building/warehouse:

3. For the prefabricated steel structure/factory/building/warehouse,we need to know the following

information to design it for you:

Dimension: 1.Total width: 2.Total length: 3. Building area 4.side wall height 5.Span

6.Column spacing 7.roofing pitch 8. Surface treatment 9. usage of the builidng

Design Index: 1.Design live load(KN/M2) on floor 2.design live load(KN/M2) on wall

3. Max crane load(Ton) 4. Max crane lift height (M)

5.Max window Load (KN/M2) 6. Max Rain Load (KN/M2)

7.Max snow load (KN/M2) 8. Max earthque Load (KN/M2)

Dimension

1.Total width: 2.Total length: 3. Building area 4.side wall height 5.Span

6.Column spacing 7.roofing pitch 8. Surface treatment 9. usage of the builidng

2

Design Index

1.Design live load(KN/M2) on floor 2.design live load(KN/M2) on wall

3. Max crane load(Ton) 4. Max crane lift height (M)

5.Max window Load (KN/M2) 6. Max Rain Load (KN/M2)

7.Max snow load (KN/M2) 8. Max earthque Load (KN/M2)

3

Enclosing

system

1.Exterior wall-material and thickness 2. roofing material and thickness

3.partition wall -material and thickness

4

Window

1.style: swing,sliding, or rolling 2. manual or engine 3. Size 4. quantity 5. position

5

Door

1.style: swing, sliding or rolling 2. manual or enging3. size 4. quantity 5. position

6

Others

1.drainage system 2.ventilation 3.skylight
