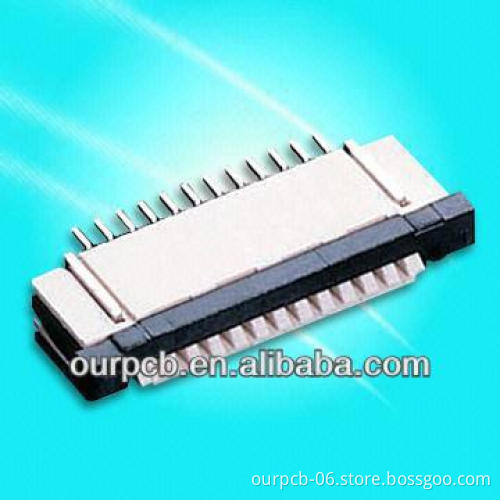

4 to 32-Pin ZIF Type FPC/FCC Connectors with 1.0mm Pitch

  Key Specifications/Special Features: 1mm contact spacing Number of contacts: 4 to 32 pins Connector height: 2.7mm Available in tube or embossed type for automatic mounting Electrical: Voltage rating: 200VAC Current rating: 0.5A Contact resistance: 20m omega maximum (initial), 40m omega maximum (final) Insulation resistance: 100M omega minimum Mechanical: Durability: mate and unmate with applicability for 20 times Contact resistance: 20m omega maximum (initial), 40m omega maximum (final) Operating force (slider): 0.2kgf*n (1.96N*n) maximum (n: pin) Cable holding force: 0.05kgf*n (0.49N*n) minimum (n: pin) Contact retention force: 0.5kgf (0.98N) minimum Material: Contacts: copper alloy Insulator housing: PA6T +GF Slide: PPS+GF Hold down: copper alloy Plating: Contact: Nickel in all areas Terminal entire: tin-lead over nickel Hold down: Nickel in all areas Hold down: tin-lead over nickel Packing method: all connector are packed in reels or tubes Information on label (stuck to each ploy bag, reel and box): Part number Section Lot number Quantity QC stamp Reprocess number ECE mark Details  As we have many type of connectors , pls sent your own drawing or pic for our reference .So that we can provide the quotation and spec more precisely and promptly. we can provide samples free for customer test, but for our company policy, you can give us the freight collect number ,such as Fedex ,TNT,UPS and so on .Or you can pay about $40 to our paypal account, and once you order from us next time, we can deduct USD40 in the amount immediately .Pls note our sample is same as our spec, and the goods will be exactly same with samples. The stability of our connectors is the last thing that you should worry about. And we don't have MOQ for the common connectors and terminals, and we always has stock for the common connectors and terminal. Regard the delivery time, we will sent out the items within 5 days after we received the payment, but it is negotiable if the order is need urgently. We can also help to make the CO,Form E if necessary.
