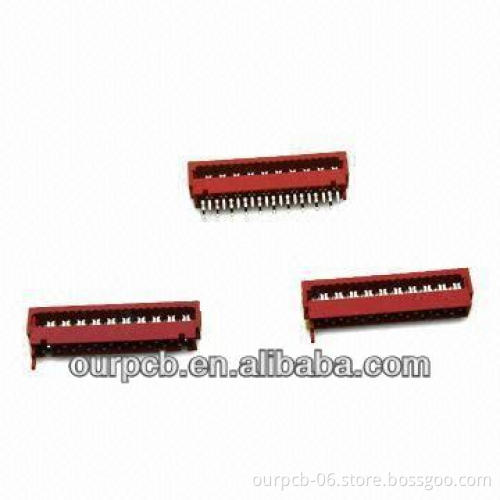

Red IDC Connectors from AMP/TYCO, with 500V AC/DC Voltage and 1A Current

  Key Specifications/Special Features:   Voltage: 500V AC/DC Withstanding voltage: 1,000V AC/minute Current: 1A AC/DC Resistance: Insulation: ≥1,000mΩ Contact: ≤20mΩ After environment testing: ≤30mΩ Temperature range: -40 to +105°C Material: PBT UL 94V-0 Pin: brass Finish: tin plating Certification: SGS Compliant with RoHS Directive Details  As we have many type of connectors , pls sent your own drawing or pic for our reference .So that we can provide the quotation and spec more precisely and promptly. we can provide samples free for customer test, but for our company policy, you can give us the freight collect number ,such as Fedex ,TNT,UPS and so on .Or you can pay about $40 to our paypal account, and once you order from us next time, we can deduct USD40 in the amount immediately .Pls note our sample is same as our spec, and the goods will be exactly same with samples. The stability of our connectors is the last thing that you should worry about. And we don't have MOQ for the common connectors and terminals, and we always has stock for the common connectors and terminal. Regard the delivery time, we will sent out the items within 5 days after we received the payment, but it is negotiable if the order is need urgently. We can also help to make the CO,Form E if necessary.
