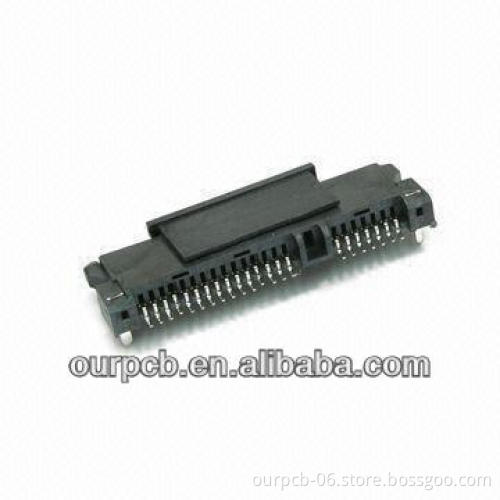

SATA 16p SMT R/A Adapter with Screw Hole and 1.5A Rated Current

  Key Specifications/Special Features:   Micro SATA receptacle is used for the bard of storage device back plane to back plane connector Mated with: micro SATA plug back plane receptacle General: Micro SATA Application: board-to-board Physical: Drawing: 000607 Gender: receptacle Circuits: 16p (signal 7p, power 9p) Orientation: right angle, SMT Row of layout: 1 rows Color: black Material: Contact: copper alloy, 15u-inch gold plating mating over 50u-inch minimum nicked under-plated, tin plating termination Latch: copper alloy, tin plating on over all Housing: high-temperature thermoplastic, 94V - 0 Electrical: Rated current: 1.5A Insulation resistance: 1,000M ohms minimum Contact resistance: 30M ohms maximum Dielectric withstanding voltage: 500V AC for 1 minute Operating temperature: -20 to +85°C Details    As we have many type of connectors , pls sent your own drawing or pic for our reference .So that we can provide the quotation and spec more precisely and promptly. we can provide samples free for customer test, but for our company policy, you can give us the freight collect number ,such as Fedex ,TNT,UPS and so on .Or you can pay about $40 to our paypal account, and once you order from us next time, we can deduct USD40 in the amount immediately .Pls note our sample is same as our spec, and the goods will be exactly same with samples. The stability of our connectors is the last thing that you should worry about. And we don't have MOQ for the common connectors and terminals, and we always has stock for the common connectors and terminal. Regard the delivery time, we will sent out the items within 5 days after we received the payment, but it is negotiable if the order is need urgently. We can also help to make the CO,Form E if necessary.
