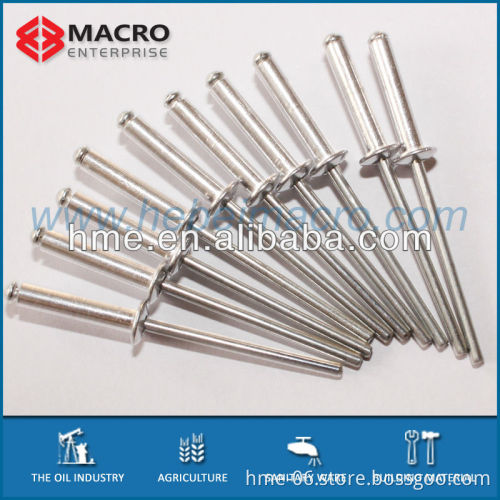

Open type Rivet body & mandrel both Aluminum blind rivet

Specifications Open type blind rivet

1. Material: Aluminum, Steel

2. With dome head

3. Good price, fast delivery, high quality.

Blind Rivet Open type blind rivet: - Aluminum/Steel open type - Al steel open type - All stainless steel open type - Stainless steel/Steel open type - All aluminum open type - Copper/Steel open type - Colored blind rivet - Large flange open type   Peel type blind rivet: - Aluminum/Steel peel type   Closed end type blind rivet: - All steel closed end type - All tainless steel closed end type - Aluminum/Steel closed end type   Special type Rivets: - Hem-Fix type - Unigrip Type - Multi-grip type - Cup-Fix type - Grooved type   Open type series Rivets

Rivet size D (mm)	Rivet Length mm	Grip Range	Head Dia.	Head Height (max. mm)	Mandrel Dia. mm	Hole Size (Drill)
2.4mm	4, 6, 8, 10, 12mm	0.5~9.5	4.2-5.0	1.0	1.55	2.5
3.0mm	6, 8, 10, 12, 14, 16, 18, 20mm	1.5~17.0	5.4-6.3	1.3	2.00	3.1
3.2mm	6, 8, 10, 12, 14, 16, 18, 20, 25mm	1.5~22.0	5.8-6.7	1.0	2.00	3.3
4.0mm	6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35mm	1.0~30.0	6.9-8.4	1.7	2.45	4.1
4.8mm	6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40mm	1.5~35.0	8.3-10.1	2.0	2.95	4.9
6.4mm	10, 12, 14, 16, 18, 20, 25, 30, 35, 40mm	3.0~33.0	11.6-13.4	2.7	3.90	6.5

Other Dia. 5.0mm, 6.0mm available as per customer's request.       Please send email to us for more infomation & price list.
