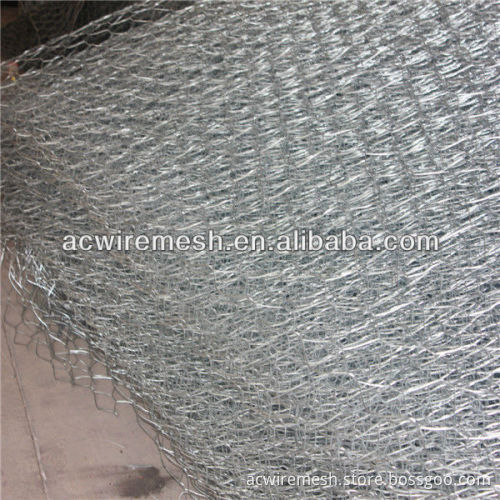

hexagonal wire netting (factory)

Specifications hexagonal wire netting

Width:0.6m-2.5m

Length:10m-60m

Diameter:BWG18-BWG26

Mesh:1/2"*1.2", 3/4"*3/4", 1"*1",

    Hexagonal wire mesh Producing from "the Native Land"of Hexagonal Mesh   1.Surface treatments(material):      1) Hot -dipped galvanized after weaving 2) Hot -dipped galvanized before weaving 3) Electro galvanized before weaving 4) PVC-coated 5)Stainless steel   2.Material :        (1)Galvanized zinc coated  (2)PVC coated  (3)Stainless steel      3. Twist Style:             (1) Reverse Twist.   (2) Normal Twist.     4.  Usage:             Widely used in industrial and agricultural constructions,fence for poultry cage,fishing cage, playground fence and Christmas decorations.    It is also called (Chicken/Rabbit/Poultry Net)         5.Specifications of Galvanized Hexagonal Wire Netting:

Opening Size			Wire Gauge		Width Per Roll
Inch	mm	Tolerance	BWG	mm	Feet	Meter
3/8"	10	+0.5	BWG 27-23	0.41-0.64	1'-6'	0.1-2m
1/2"	13	-1.5	BWG 27-22	0.41-0.71	1'-6'	0.1-2m
5/8"	16	+1.0/-2.0	BWG 27-22	0.41-0.71	1'-6'	0.1-2m
3/4"	19	+1.0/-2.5	BWG 26-20	0.46-0.89	1'-6'	0.1-2m
1"	25	+1.5	BWG 25-29	0.51-1.07	1'-6'	0.1-2m
1 1/4''	31	-3.0	BWG 24-18	0.56-1.24	1'-6'	0.2-2m
1 1/2"	40	+2.0/-4.0	BWG 23-16	0.64-1.65	1'-6'	0.2-2m
2"	51	+2.0/-4.0	BWG 22-14	0.71-2.11	1'-6'	0.2-2m
3"	76	+2.0/-4.0	BWG 21-14	0.81-2.11	1'-6'	0.3-2m
4"	100	+2.0/-4.0	BWG 20-12	0.89-2.80	1'-6'	0.5-2m
Remarks : The length per roll could be produced according to your need.
Other specifications are available, If you have a special requirement, HTM can help.
Could be weaved in continuous or reverse twist

  6.Specifications of PVC Coated Hexagonal Wire Netting:

Opening	Wire Gauge
mm		mm
13mm		0.9,1.0
16mm		0.9,1.0
19mm		0.9,1.0
25mm		1.0,1.2,1.4
40mm		1.0,1.2,1.4,1.6
50mm		1.0,1.2,1.4,1.6,2.0
Remarks: Length:5m,10m,25m,30m Width: 0.5m -2.0m
Other specifications are available according to your order. If you have a special requirement, HTM can help.

    7.Machine & Factory pictures:
