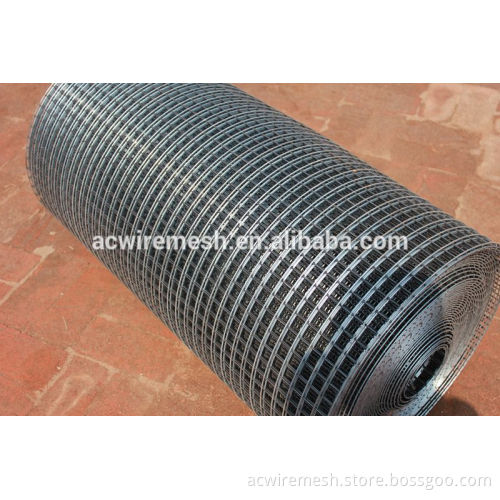

PVC Coated quality square metal used welded mesh rolls

    PVC Coated quality square metal used welded mesh rolls  Product Description The welded wire mesh is welded by excellent low-carbon steel wires and passivated and plasticized through cold plating (electroplating), hot dipping and PVC plastic coating. With flat surface, even mesh count, firm welding spots and stable structure, it features its strong completeness, partial good machining performance, stability, excellent corrosion resistance and rush prevention.
The welded wire mesh can be used as poultry case, egg basket, passageway rail, waterspout, lobby guardrail, rodent-resistant net, mechanical shield, livestock and plants guardrail and fences, etc. in industry, agriculture, construction, transportation and mining industry, etc.
The welded wire mesh can be divided into the cold-plating & post-welding wire mesh, the pre-welding and cold-plating wire mesh, the hot-galvanizing wire mesh and the plastic-coating wire mesh.
Width: 3', 4', 5', 6'
Length: 100'
Normal specifications: 2", 1", 3/4", 5/8", 1/2", 3/8", 1/4" and so on.
Birmingham Wire Gauge (BWG): 14# to 23#   Detailed specification table

(Standard mesh)30m/coil, width 0.5m-1.8m
Mesh		Wire diameter (BWG)
Inch	mm
1/4" x 1/4"	6.4 x 6.4	22 23 24
3/8" x 3/8"	10.6 x 10.6	19 20 21 22
1/2" x 1/2"	12.7 x 12.7	16 17 18 19 20 21 22 23
5/8" x 5/8"	16 x 16	18 19 20 21
3/4" x 3/4"	19.1 x 19.1	16 17 18 19 20 21
1" x 1/2"	25.4 x 12.7	16 17 18 19 20 21
1-1/2" x 1-1/2"	38 x 38	14 15 16 17 18 19 20
1" x 2"	25.4 x 50.8	14 15 16
2" x 2"	50.8 x 50.8	12 13 14 15 16
