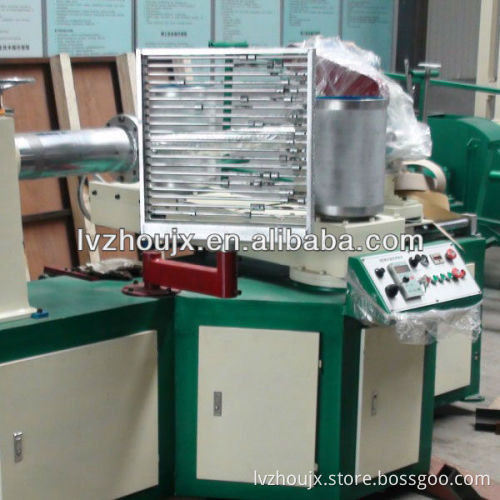

Lvjoe brand spiral paper core machine with ISO Certificate
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
PLC logic control system
Professional engineer team
advance technology
Lvjoe brand spiral paper core machine with ISO Certificate Usage: General model,used for making all kinds of tupe for tape,jumbo roll,chemical fibre,paper cans,ect.
Feature: 1. Adopted PLC logic control system, man-machine interface. 2. Main motor is adopt vector type of high torque inverter for speed regulate. 3. Positioning length by photo electricity with Auto speed changing function, in order to meet high cutting precision. 4.Modularization electric layout designing for easy and scientific using,maintaining and repairing. 5.There is a remote controller for easy operating.(uses it to stop or slow down the machine when lacked paper ) 6. low noise driving designing 7.Adopte single or double size gluing and independent stainless steel gluing box,with polyurethane scraper. Drive mode | One chain type 7.5kw electric motor Three DC 2.2 kw electric motors | Quantity of operators | 1-2 |
Paper layers coiled | 3-18 layers | Main machine speed ratio | Turbine reduction ratio: 1:30 |
Reeling rod fixation method | Clamping type+ flanging type bi-direction fixation. | Tube reeling velocity | 1 -12 m /min. |
Reeling rod diameter | 12 -100 mm | Cutting method | Single-blade & saw blade both applicable |
Reeling machine head | 2-head | Main machine size | 1800x1800x2200 |
Main machine power | 7.5kw | Cut length method | Double infra-red rays + positioning plate |
Auxiliary power | 0.55kw | Speed regulation method | Frequency conversion +PLC |
Gumming method | Single-side or double-side gumming | Paper tube wall thickness | 1.0-8. 0mm |
Power supply | Four items | @ Computer PLC control with remote control port. | |
@ Setup of more than 80 functions, set mechanical operation conditions at will | @ Automatic gumming-stop | ||
@ Automatic cutting and automatic tube falling | @Low noise,65dB | ||
@ Automatic speed adjusting and automatic reset during cutting | @ Stainless gum basin, polyurethane glue knife,durable | ||
@ Multipoint operation panel or digital remote control function which is very convenient for operation | @ Disc cutter cuts off with square snick and stable performance. | ||
@ The frequency-conversion speed-regulation control can save electricity by 30-60% compared with conventional electromagnetic speed regulation. | @ Double infra-red rays Main machine conducts automatic speed regulation to ensure tube length with higher precision. | ||
