excellent quality paper tube making machine with new technology
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
each type is for producing several different sizes of paper tubes.

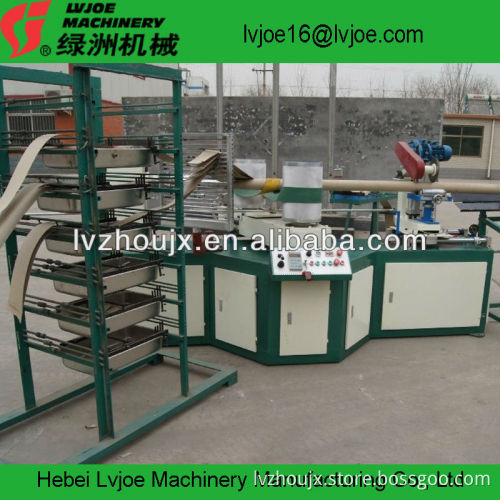

excellent quality paper tube making machine with new technology Automatic paper core making machine 1.dimension of roll core : Φ28-75mm(2-7ply) length:1200-2000mm 2.dimension of raw paper :300-400 g/m2 width :50-90mm 3.power :4.5kw (380V.50HZ) 4.dimension of main machine :3000×1800×1600mm 5.dimension of glue coating machine :1800×500×1800mm 6.dimension of paper feeder :4500×1300×800mm 7.weight of all machine :2.5ton Use: Used for making all kind of tubes,such as sticky tape tube,cloth roller tube,tissue paper tube, chemical fibre tube,body of paper cans.
Model | |||||
Technical parameter | Wheel hub driving | 4 wheels | |||
Number of roll paper | 3-16 plies | Cutting blade motor | 0.4 kw Servo & Stepping motors | ||
Max-diameter | 200mm | bearing | Wanxiang | ||
Min-diameter | 20mm | Control system | |||
Max-thickness | 10mm | Controller | PLC Delta | ||
Min-thickness | 1mm | Program edition | JS-E 2.0 | ||
| Rolling core matrix fixed way | fixation | Man-machine interface | Wenview | ||
Rewinding noses | Four noses double belt | Inverter | YASKAWA 7.5KW | ||
Cutting way | Single bladecutting | Execute equipment | Zhengtai | ||
Gluing way | Double sides | Signal component | Omron | ||
Fixed length way | Infrared/apron/ Numbering device | Angle adjusting machine | have | ||
opertor | 1-4 | Pneumatical part | Airtac | ||
Productive speed | 3-28m/min | synchronized control | Servo, | ||
| Speed of adjust and control | Inverter | Synchronized follow cut-system | Servo follow system | ||
Power input | 3x380V | Outfit assemble | |||
Size (mm) | Remote control | have | |||
| Mainframe size: L*W*H | 4150mm x 1850mm x 2050mm | Auto falling tube shelf | have | ||
Area space:L*W | 18000*6000 | Angle of belt | auto | ||
Wheel hub diameter | 215mm | Belt adjust | manual | ||
Wheel hub width | 200/350 | Mainfram swing angle | have | ||
Min-tread | 750 | Stop when paper without | have | ||
Max-tread | 950 | Auto giving glue | Screw pump 1.5 kw | ||
Total weight | About 4500kg | Paper-belt giving lubricating oil | Auto | ||
Drive system | Tension control | Can choose | |||
Main power | 7.5KW | Paper-shelf type | Integral | ||
Move speed | 1400r/min | belt | sailcloth | ||
Hub max speed | 48r/min | Enclosed component | |||
Hub output strength | 4500n.m | Shaft | 2 | ||
Reductor type | WPO | Belt | 2 | ||
Gearbox typa |
| Useful tool | have | ||
1600A slitting machine:
automatic paper core cutting machine:
