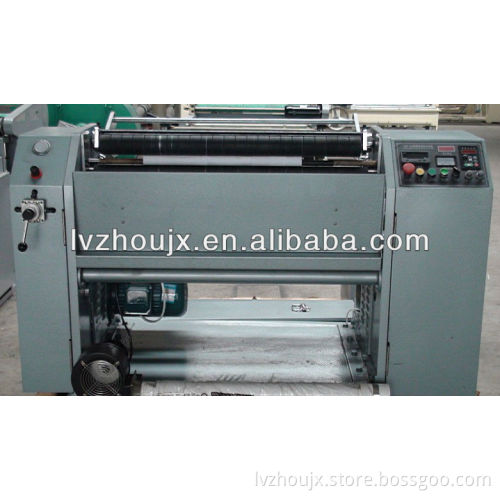

Thermal FAX ATM POS Medical Replort Paper Roll Slitting&Rewinding Machines

Specifications 1Suitable for all product raw materials Slitting Roll of PET, PE,

2PVC,

3FOIL,

4 FILM, TAPE,

5THERMAL & SMALL PAPER ROLL

1.Maximum Width : 700/1000mm 2.Maximum Mother Reel Dia : 1000mm 3.Slitting Width (Standard) : Adjustable Width Maximum 1000mm 4.Maximum Rewind Diameter : 160 mm /300mm 5.Rewind Core Diameter : 0.3" / 0.5" / 1" / 1.5"/2'' - Standard 6.Cutting Speed : 12 - 150 M / per minute 7.Machine Overall Dimension : 2 M (L) x 1.9 M (W) x 1.1 M (H) upon per Model 8.Nett Weight of Machinery : 1/2 Ton /1.5Ton 9.Power Voltage : 380 Voltage / 50 Hz(Option) 10.Total Power : 4.5 kw (kilowatt) 11.High precision, user friendly, easy operation and maintenance 12.Auto tension, paper feeding, adjustment & alignment control
13.Auto control length meter with alarm upon complete rewinding
14.Complete with ink end-roll marking to distance program by meter
15.Digital Computerized Control Panel Board for all movement, adjustment and others
16.Machine comes with 20 sets of TOP Rotary Slitting Knives and 10 sets of Slitting Holders
17.Lists of LOWER Rotary Slitting Knives & Spacers suitable for maximum 4 rewind small roll width (to be advised by buyers)
18.Complete set of essential machine tool kits
19.English Instruction/Manual Book + VCD on machine set-up & VCD on machine in production (taken at one converting factory)
