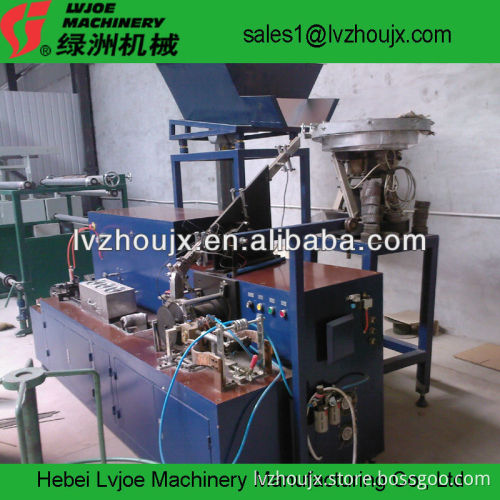

China Supplier Coil Nail Collator with High Speed Low Cost
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
easy to operate, high speed, low noise
high efficiency, low cost
LV-1700 Coil Nail Collator Specification:
Model | CNC – N3 | Applicable nail types | Common wire nails with smooth, annular, twisted shank |
Applicable nail sizes | Capacity | Electronic control system | PLC Model: CPM2AH-60CDR-A (OMRON, Japan) + MPT terminal connection |
| Dia. x Length: Ø1.8-2.5mm/25-75mm Ø2.7-4.0mm / 75-100mm | Welding speed: at 1250 – 2000 pcs/min at 800 – 1800 pcs/min | Touch Screen Model:TP110VT, size: 10.4” or digital display screen | |
| Coil spec. : - Angle - Nails per coil - Welding wires |
15°- 16° 200 – 400 copper coated steel wire | VF inverter Model:S1100-2T-0.75KW SANCH, 1-phase, 220V | |
| Applicable power supply | AC 380V, 50Hz, 3-phase (others available upon request, like: 220V, 60Hz, 3-phase) | MCUfor welding process, Model: AT89C52 (ATMEL, USA) | |
Welding power supply | DC 290 – 330V | Compressed air | ≥ 0.4 – 0.8Mpa |
Welding current | 1000 – 2000A (secondary side) | Cooling water | Pressure required: 0.1 – 0.2Mpa |
Rated power | 8KW | Net Weight | Approx. 1500kgs |
Max. power | 20KW | Dimensions | 2350 x 900 x 2000mm (S) 2650 x 900 x 2000mm (L) |
Ms. Sophie, tel: +86-15931138656, skype: xuefei8648, trademanager id: cn1001780557
