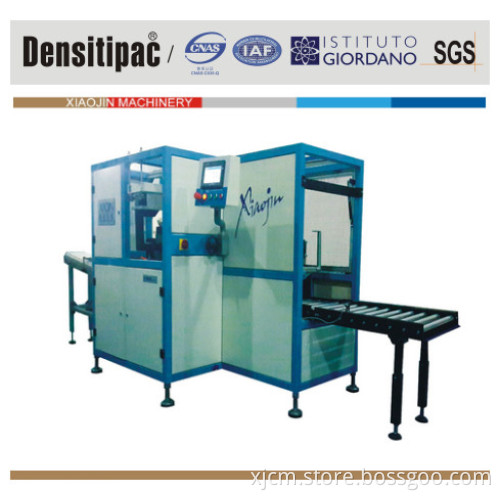

Automatic Cartridge silicone sealant case packer

Brief Introduction: Join work with our ZDF series cartridge filling machine,save labor cost. Automatic box formed Box dimension:4*4 ,4*5, 4*6, 5*5, 5*6 Mechanical driven force:Servo Motor Operation: touch screen Famous brand in pneumatic and electric component. Safety device available. With Bottom of the box be sealed by tap(Optional function) Date printing in the box(Optional Function). Box output automatically.   Data Sheet:

Mode	Y-BS-2
Power	P1-220V,50Hz,2.5Kw
Pnuematic	0.6-0.8Mpa
Driven force	Servo motor
Packaging box dimension	4*4,4*5,4*6,5*5,5*6
Box	Specially for machine used
Capacity	2-6 box/min
Input far from the ground	790mm
Output far from the ground	570mm±100mm
Weight	Abt.850Kg
Dimension	4080mm(L)*1400mm(W)*1600H)
