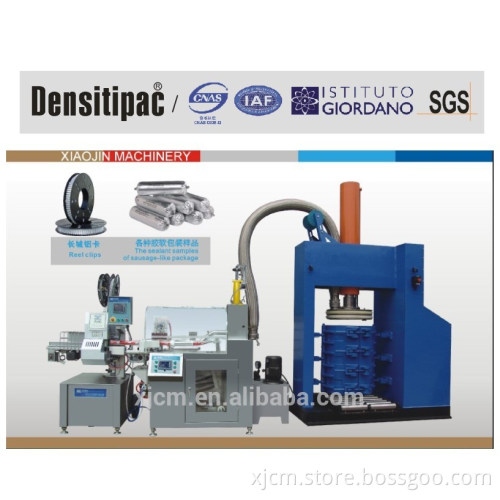

Full-Automatic Sausage(Foil) Sealant filling machine

Get Latest Price

Delivery Time:: 50 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Summary: Fine-look and tidy-structure come from the processing technology of CNC centre. It suitable for producing material like paste or sealant, such as polyurethane, silicone or MS-poly. It deserves the favour by its high automation and accurate dosing parts. Parameter:

Power supply	P3-380VAC, 50Hz, 8.5Kw
Pnuematic	0.6Mpa
Packaging materials	Alum Foil
Foil Width	Abt. 160mm
Products dimension	Φ46-Φ49
Heating range	0-300°C
Dosing range	0-700ml
Motor Standard	Hydraulic system:5.5Kw
	Feeding conveyor:5.5Kw
	Clipping system:3Kw
Hydraulic Pressing standard	0-25Mpa
Capacity	13-25 /min(600ml)
Controlled	PLC
Height between input and the ground	1110mm
Input dimension	3 inch----Fast connection
Weight	Heat sealing system:Abt.300Kg Clipping system:Abt.450Kg
Dimension	Heat sealing system:1560mm×550mm×1760mm Clipping system:1050mm×922mm×1760mm
