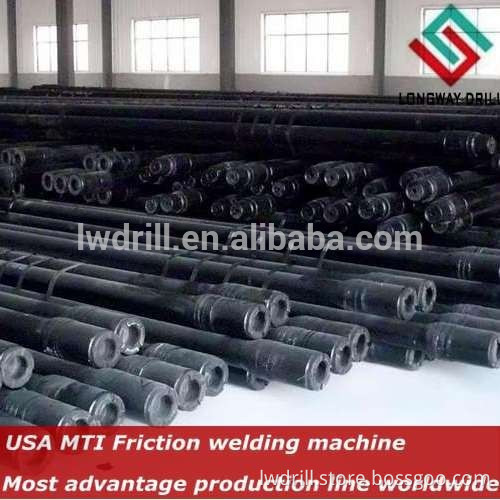

2-3/8" API 5DP Drill pipe (E75)

Specifications 1.Steel grade: E75, X95, G105, S135
2.Pipe wall thickness as API standard
3.Length from RI  to RIII
4.Tool joint: NC, IF, FH, XH, REG   2-3/8" E75 Drill pipe for water well, oil well,  geothermal well drilling, geological research drilling, etc.   Speifications of drill pipe 2-3/8''(60.32mm)

2-3/8''(60.32.mm)
OD		Grade	RSD	Weight  Designation	Wall thickness		OD of joint
Inch	mm				Inch	mm	Inch or mm
2-3/8''	60.32	E75,X,G,S	NC26	6.65	0.280''	7.11	API standard



Steel Grade	Specification OD	Internal Coating	Hardbanding	Length
E-75 R780 X-95 G-105 S-135	2-3/8''(60.32mm)	TC2000 TC3000 TK34 TK34p	ARNCO 100XT ARNCO 300XT ARMACOR-M TCS-Ti TCS-8000	R1:6.1-7.01m  R2:8.84-9.75m  R3:12.19-13.72m
Product	API oil drill pipes, Water well drill pipes, Flat drill pipes, Non-dig drill pipes, Geographical drill pipes and various tool joints.

  Established in 1996, Longway has got the certifications of ISO9001 and API 5DP.  We manufacture API 5DP Drill pipes of OD 2-3/8'', 2-7/8", 3-1/2", 4", 4-1/2", 5", etc. and are sure our products can meet your requirements.   If you have interest, pls send a specific inquiry to us. Hope to have a further negotiation with your company.   Usage: Mine blasting, water well drilling, geothermal wells drilling, fore poling,  coal and nonferrous metal mining projects, etc.   Brief information of drill pipes we manufacture:

OD	2 3/8''	2-7/8''	3-1/2''	4''	4-1/2''	5”
Wall Thickness (mm)	7.11	9.19	9.35/11.40	8.38	8.56/10.92	9.19/12.70
Steel Grade	E75 X95 G105 S135 R780
Upset style	IU EU IEU

  Delivery Details: 30 days after receiving the payment , or according to both parties’ agreement   Packing details: Black painting, bundles, thread protectors on pin and box, or according to customer’s requiement 1. Pipe body process   2. Tool joint process   3. Friction welding   4. QC      Professional drill pipe manufacturer with API 5DP-0011 certifcate, serve the well drilling teams worldwide. --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Eric Niu at your service 24 hours by cellphone: +86  134  0311  3364   or Skype   lwdrillsales
