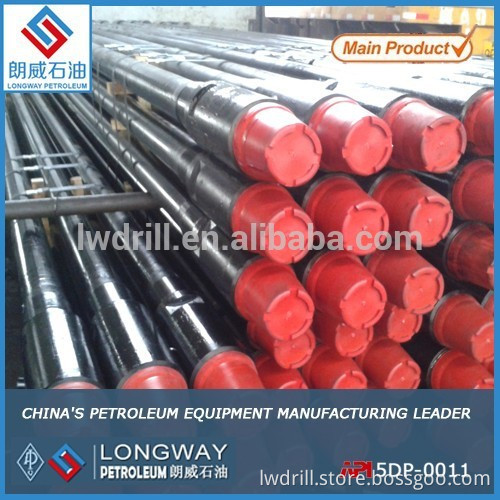

S135 5 1/2" Drill Pipe--6m Length

API 5DP S135  5 1/2"(139.7mm) Oil Drill Pipe--

139.7mm standard drill pipe specification:

Pipe size	PPF	Pipe OD		Wall thickness		Grade	Upset type	RSC  type	Tool joint OD		Tool joint ID
	lb/ft	in	mm	in	mm				in	mm	in	mm
5 1/2	21.9	5.5	139.70	0.360	9.17	E	IEU	5 1/2 FH	7.0	177.80	4.00	101.60
						X			7.00	177.80	3 3/4	95.25
						G			7 1/4	184.15	3 1/2	88.90
						S			7 1/4	184.15	3.00	76.20
	24.7			0.420	10.54	E	IEU	5 1/2 FH	7.00	177.80	4.00	101.6
						X			7 1/4	184.15	3 1/2	88.90
						G			7 1/4	184.15	3 1/2	88.90
						S			7 1/2	190.50	3.00	76.20

     More information:

Steel grade	OD	Internal coating	Hardbanding	Length
E75 X95 R780 G105 S135	2 3/8”~5 1/2” (60.3~139.7mm)	TC2000 TC3000 TK34 TK34P	Arnco100XT Arnco300XT Armacor-M TCS-Ti TCS-8000	R1:6.1-7.01m R2:8.84-9.75m R3:12.19-13.72m

  Tensile performance parameters:

Steel Grade	Yield Strength				Tensile Strength
	min		max		min
	Psi	Mpa	Psi	Mpa	Psi	Mpa
E-75	75.000	517	105.000	724	100,000	689
X-95	95.000	655	125.000	862	105,000	724
G-105	105.000	724	135.000	931	115,000	793
S-135	135.000	931	165.000	1138	145,000	1000

      Our products range: 1.API 5DP oli drill pipe
2.coalbed gas drill pipeaa
3.shale gas drill pipe
4.geothermal well drill pipe
5.water well drill pipe
6.drill collar/kelly
7.heavy weight drill pipe
8.geological drill pipe     Drill pipe usage notes: 1. New drill pipe should be pasted thread oil before connection 2. Make up and break at least 3 times before drilling 3. Hard bending and plastic coating can be processed according to clients’ special requirements     1.Tool joint production:   2.Pipe body production:   3.Friction welding:   4.Quality control:       Our workshop:
Most advanced production line all over the world
1.USA MTI friction welding machine
2.Whole pipe heat treatment equipment
3.Forging process tool joint line
4.100% nondestructive inspection by ultrasonic flaw and magnetic      Service for oilfield worldwide: Today,our products not only sold to domestic oilfield in North China,Daqing,Jilin,Changchun and so on,but also exported to France,Canada,India,Kazakhstan,Turky,Chile,Argentina,Egypt,Sudan,Iran,UAE,South Korea,Ukraine,Russia,Uzbekistan,Singapore,Australia and so on.       Company overview:  Our company covers an area of 70, 000 square meters, among which the construction area is 50, 000 square meters. Its total asset is one billion RMB.       Exhibiton we attended:  ADIPEC Abu Dhabi  RIO OIL&GAS KIOGE IRAN OIL CIPPE Beijing  CDYPE Dongying  XIPPC Xian      API&ISO,Gost certification,150 workers,20years experiences strict management and Q/S system , this is how we keep good quality and reliable cooperation for global valued customers.

Welcome to visit to our plant !
