Steel Tile Forming Machine
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|

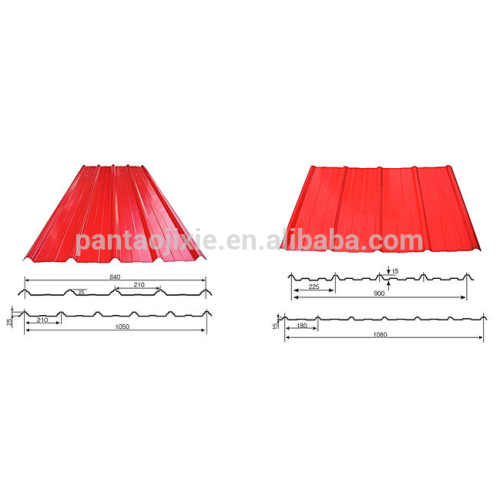

Roll forming machine | Roll forming machine model | 840/900 |
Roll forming machine size | 6000mm*1300mm*1500mm | |
weight | 3800 kg | |
frame structure | 300 HSteel welding | |
Roll Forming machine Roller steps | upper:9 rolls:11rolle | |
Shaft material | 45# | |
Forming axial size | diameter of axle 70 | |
press roll material | 45 # steel hard chromium plating processing | |
Driving Method | Sprocket chain transmission | |
Sprocket chain specification | 0.6 cun | |
power | 6 KW | |
speed | 8-10m/min | |
Rolling material thickness | 0.3-0.8mm |
Computer control system | LCD | A 5.7 -inch LCD display, including program in both Chinese and English
|
operating principle | Using the industrial computer PLC automatic control system, the accurate control of the board size, pressure plate precision, rolling speed |
| The hydraulic shear system
| Shearing mould material | Cr12High temperature quenching |
The hydraulic shear power | 3 KW | |
operating principle | Using the latest hydraulic shear system, using the working principle of the gear oil pump. System consists of hydraulic pump station a, a hydraulic oil cylinder, hydraulic tubing two root, two sets of electromagnetic valve |
All machine models
Which model machine you are intereted please contact me freely
