Mutifunctional poultry feed pallet machine popular in oversea and domestic market

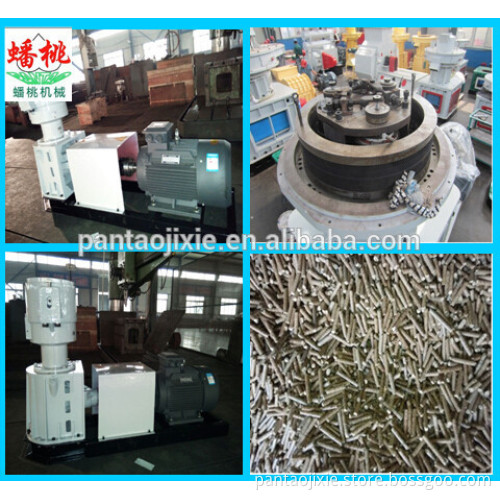

Mutifunctional poultry feed pallet machine popular in oversea and domestic market        Company introduces the advanced German press block granulating technology, through continuous improvement and innovation, successfully developed the SKJ - 3-4 series "cone wheel flat die machine, multi-function briquetting, granulation, to meet the needs of international biomass energy regeneration of dense compression molding of products.       The aircraft wheel used in cone. Make it ends with mould disc, outer ring line speed is consistent, not appear dislocation of the wheel and mould friction, reduce the resistance and reduce the kinetic energy loss, prolong the service life of the mold, this is a major difference with other compression molding equipment.
  Pressure-regulating device which adopts screw center, mold clearance over big with small, is suitable for various materials, ensure the suppression effect.
    Application:   Is mainly suitable for coarse fiber granulation, such as: sawdust, rice husk, cotton stalk, cotton seed hull, weeds and other crops straw, living garbage, waste plastic and waste of the factory, bonding rate is low, difficult to molding material granulation, briquetting, bar, also can be applied to bio-bacterial manure, organic fertilizer and compound fertilizer granulation in low temperature.    Models and specification:

Model	Capacity (kg/h)	Power (kw)	Specification (mm)	Weight (T)	Size (mm)
TCZL120-P	70-100	3	4-6	0.05	1150*300*550
TCZL150-P	100-300	7.5	4-6	0.15	1260*400*650
TCZL200-P	300-500	11	4-6	0.2	1300*500*850
TCZL250-P	400-700	15	4-6	0.5	1400*600*1000
TCZL300-P	600-1000	30	4-8	0.76	1860*670*1600
TCZL350-P	100-1200	37-4	4.5-10	2.2	1900*850*1750
TCZL450-P	1000-2000	55-4	4.5-10	4.3	2300*1100*1900
TCZL550-P	2000-3000	90-6	4.5-12	5.5	2350*1000*2050
TCZL800-P	3000-5000	130-160	4.5-12	6.8	3200*1235*2700

    Raw materials.
