Frame Plate Liner Insert

Frame Plate Liner Insert

Introduction:

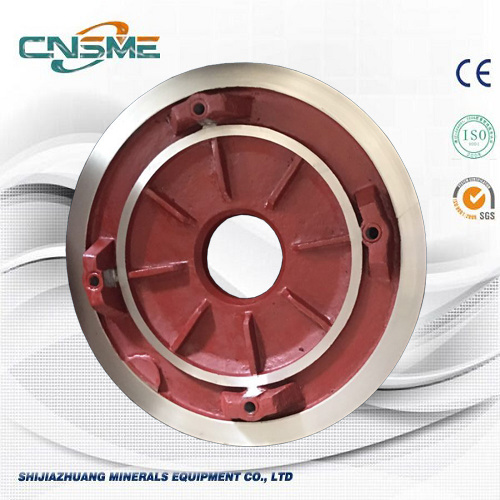

F8041A05-Frame plate liner insert for slurry pump Warman model 10/8E-M. Material is A05-Ultrachrome, 27% Cr Erosion resistant white iron. Alloy A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its microstructure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

Function of Interchangeable slurry pump parts

1. horizontal,end suction, cantilever horizontal mining single stage slurry pump parts.

2. All spare parts are standard world wide, and completely interchangeable with world famous brand(Australia brand)

3. Good price but high quality

4. Wear resistance metal,from High Cr 27 to Cr30

5. Metal and rubber liner choice,denpend on your needs

6. Transmission:V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.

A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series

Construction of Metal Pumps:

Metal Pump Application:

SME Slurry Pump Parts:

(Impeller, Volute Liner, Thraot Bush, Frame Plate Liner Insert)
