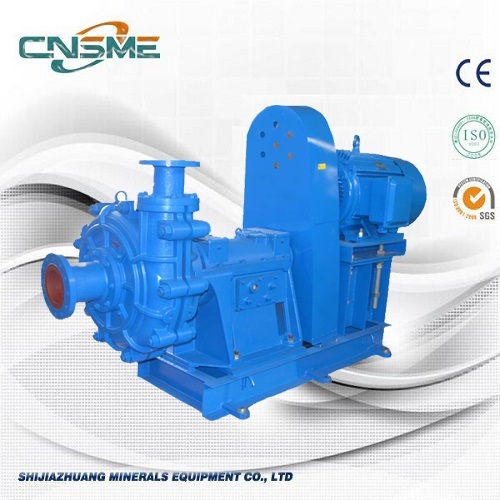

Solids Handling Slurry Pump
Introduction:
Type ZGB are double casing horizontal slurry pumps designed by the Chinese local engineers based on modern hydromechanics and mechanics theories.
They are suitable for heavy abrasive and thick concentration applications with slurries pH range 5~14. Material of wet-end parts is hard metal only. ZGB pumps are very commonly used in Chinese domestic projects, but more and more overseas customers come to recognize their superb performance.
ZGB pumps are good choice for solids handling. ZGB pumps are only designed to be metal lined, which means the wear parts are not interchangeable with rubber parts. But this also makes ZGB pumps are very roboust in handling full flow high head slurry applications. The obvious advantage of ZGB pumps is that the rotating speed of ZGB pumps is fixed, either to be 740r/min, or 980r/min or 1480r/min, so the customer can use direct couplings to connect the pumps with the elec. motors to save the total cost.
A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Specifications:
|
Model |
200ZGB |
|
Capacity |
300-1100m3/h |
|
TDH |
40-95m |
|
Max. Allowable Power |
560Kw |
|
Speed |
740r/min or 980r/min |
|
Max. Efficiency |
76% |
|
Lubrication |
Oil |
Construction of Metal Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant
Performance Curve:
