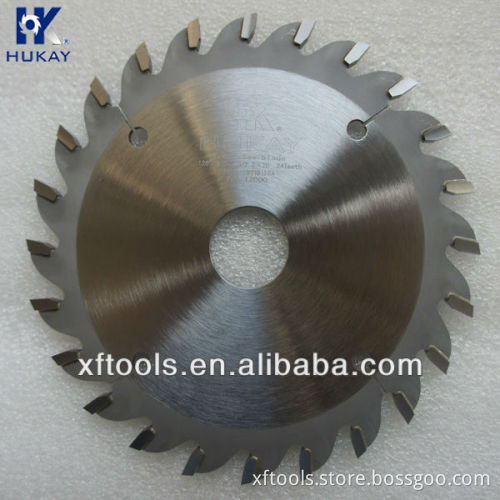

TCT sawblade cutting tools conical scoring

Specifications TCT sawblade cutting tools conical scoring

1. Score the coating on bilaminated panels

2. Cutting material:MDF, MFC, chipboard.

[Hukay] TCT sawblade cutting tools conical scoring   Brand: Hukay   Panel scoring    Application: Split and solid panel scoring - used in conjuction with
                      main cutting blade
Material: Veneered and laminated boards, singles and packs Machine: Panel saws, sliding table saws       Product Description Our split scoring blades with flat tops and solid scorer blades with conical tooth geometry both have long life teeth. Used in conjunction with the main blade, they ensure a much finer finish on veneered boards, plastic laminated boards and chip boards, and are commonly used by furniture manufacturers. Our standard panel scoring blades are very popular for most panel/sliding table saws.   Specification:

No.	Diameter(mm)	Kerf (mm)	Thickness(mm)	Bore Diameter(mm)	No. teeth
1	120	3.0-4.0	2.2	20/22	24
2	160	3.0-4.0	2.2	25.4	36
3	180	3.3-4.3	2.5	30	40
4	180	4.3-5.3	3.5	45	40
5	180	4.6-5.6	4.0	45	36
