KAQ Printing Proofing Machine

Specifications Stable

High Printing Precison.

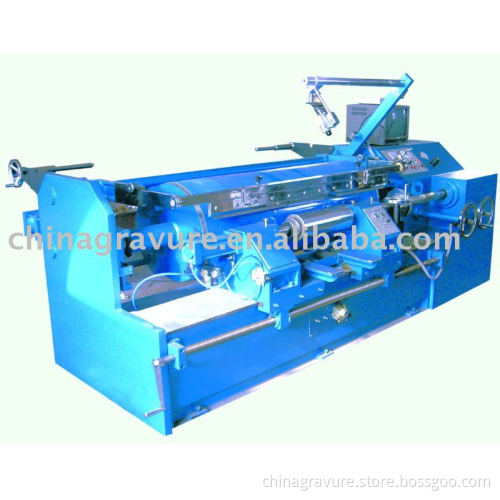

KAQ-350X800 proofing machine is especially designed for checking the quality of a newly made gravure cylinder before assembling it into the production line.It is equipped with cylinder pneumatic clamping , clockwise or counter-clockwise rotation, rubber roller positioning and movement pneumatic control, and also blade lifting, pressure and angle adjustment system, photo focusing lens, 14 inch monitor, fine tuning of cylinder position so as to guarantee satisfactory printing and precise registration.   Main Technical Parameters

Dimension ( L x W x H )		3180 x 1500 x 1200 mm
Weight		4200 kg
Power Supply		4 kw
Press roller diameter	Φ500		Printing press	Pneumatic cylinder pressure 3-4 kg/cm2
Rubber coating width	1400mm		Scraper adjustment	Manual adjustment
Rubber coating thickness	3mm		Angle adjustment	Manual adjustment
Max.printing width	1400mm		Drive power	3kw,120-1200 rpm
Cylinder length	420-1400mm		Power source	3-phase AC 380v,50hz
Cylinder diameter	115-350mm		Pneumatic source	Pressed air 7kg/cm2 , flux 0.3m3
Printing speed	7-40m/min		Customer Responsibility	Air compressor

The parameters can be adjusted according to the customer’s require
