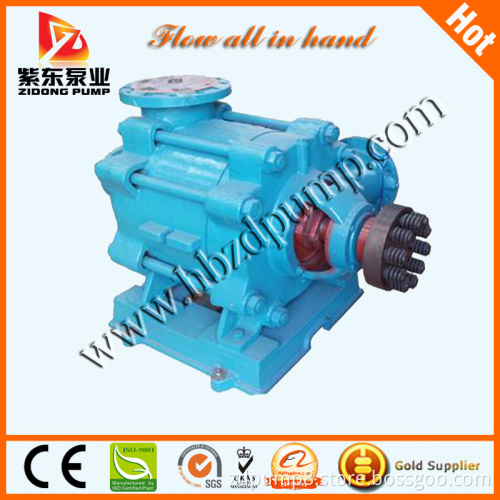

Electric drive multistage water pump

Pump overview

Non leakage booster pump is single suction multistage segmental centrifugal pumps which adopt energy-efficient

hydraulic model, they conform to "GB/T5675 Centrifugal Pump Technical Condition III",with wide performance

range, high efficiency, reasonable structure, safe and steady operation, low noise, long life performance and easy

installation and maintenance.

Pump features

Non leakage booster pump is installed horizontally, the inlet is horizontal and the outlet is upward, they can be

changed as required. The pump consists of pump body,rotor, balanced construction, bearing and seal.

Pump body: suction casing, stage casing, discharge casing and diffuser are linked by bolts to form a working

house.

Rotor: it consists of shaft, impeller, shaft sleeve, balance disk etc.

Balanced construction: it consists of gimbals, balancing sleeve, balanced pipeline.

Parts of bearing: they consist of shaft box, bearing and bearing cover. Except 85-67,155-67,60080,800-80

type pump adopt sliding bearing and oil lubrication, other pumps adopt rolling bearing and grease lubrication.

Pump application

D type pump apply to mining, factory and city water supply and drain, and are used for transporting clear water

without solid particles, abrader and suspended substance or other liquids that their physical and chemical

properties are similar to clear water.
